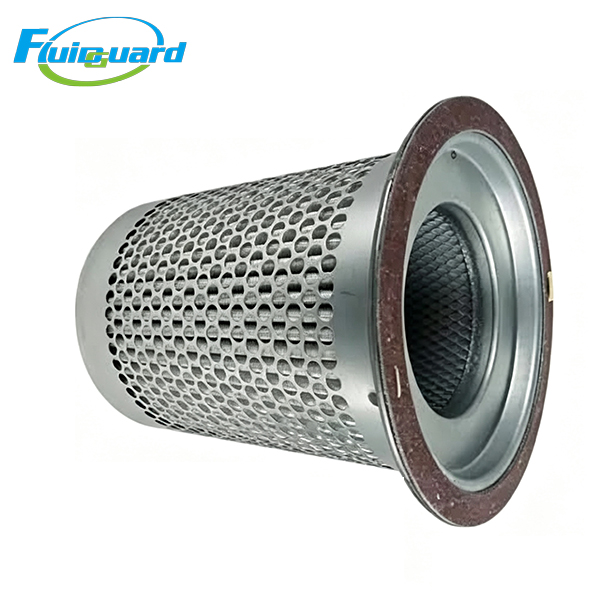

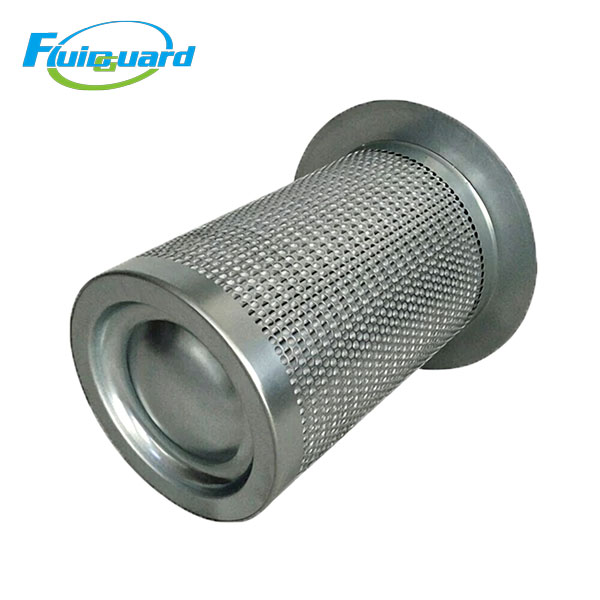

Oil Separators Filters

Part No: 98262-173

Core Technical Specifications

Filter Media: Multi-layer gradient borosilicate microglass composite coalescing media

Max Working Pressure: 1.4 MPa

Continuous Operating Temperature Range: -10℃ ~ +100℃

Standard Service Life: 3,500–4,000 running hours under clean intake air; shorten to 2,500–3,000 hours for dusty, high-load spray booth environments

Mandatory Replacement Alarm Threshold: Differential pressure ≥0.1 MPa

Key Product Advantages

Ultra-high coalescing efficiency reduces load on downstream pipeline precision filters

Multi-layer gradient glass fiber media traps micro oil aerosols generated during compression. It drastically cuts oil contamination entering dryers, medium/ultrafine filters and activated carbon adsorbers, extends service life of all downstream consumables and lowers overall maintenance expenditure.

Large oil & dirt holding capacity supports long-hour full-load continuous production

Deep-pleated microglass matrix stores massive oil sludge, carbon deposits and fine solid impurities without rapid pressure rise, suitable for non-stop heavy-duty workshop operation.

Heat-stabilized glass fiber media prevents fiber shedding and system secondary pollution

High-temperature cured borosilicate media will not soften, deform or pulverize under sustained 100℃ oil-gas mixing temperature. No glass fiber debris enters air piping to block solenoid valves, spray nozzles or laser optical lenses.

Low permanent differential pressure saves compressor power consumption

Uniform gradient pore layout maintains minimal airflow resistance throughout the full service cycle. Stable low backpressure reduces continuous running load of the main motor and cuts long-term factory electricity costs.

Integrated one-piece flange design for fast, leak-free maintenance

Pre-attached full-circle composite sealing gasket on the stamped steel flange. A single technician finishes replacement within 5 minutes after full machine shutdown, pressure relief and oil tank venting; no separate loose gaskets to cause assembly leakage.

Working Principle

High-temperature mixed oil-gas flow passes through the separator cartridge from outside to central inner core:

Large oil droplets collide with outer perforated support mesh, coalesce and drain back to the compressor oil tank via gravity;

Submicron oil aerosols are captured layer-by-layer by gradient microglass media, merge into large liquid oil droplets and flow downward for recovery;

Dry compressed air with residual oil below 3 ppm flows through the central tube to post-processing air piping;

All trapped sludge and solid contaminants remain locked inside the separator media to avoid secondary circulation pollution of the oil system.

Application Industries

Automotive component manufacturing lines, plastic injection molding factories, metal cutting & welding workshops, pharmaceutical packaging production lines, food processing plants, mining pneumatic supporting air stations, electronics assembly workshops, medium electrostatic spray booth air supply systems.
