Oil Separators Filters

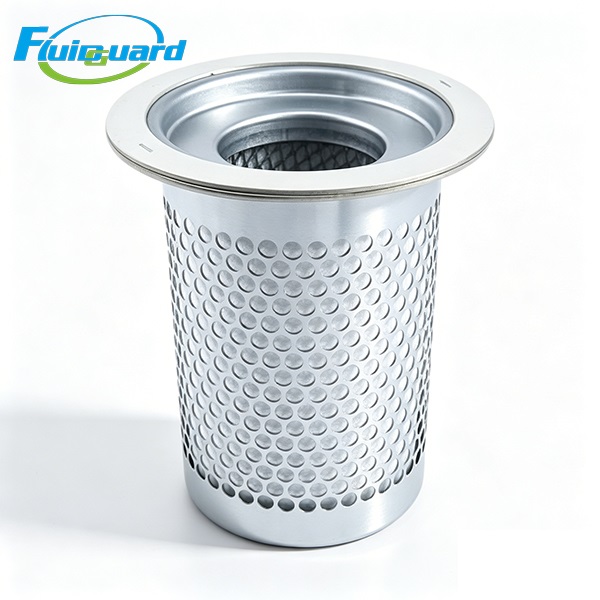

Part No: 4930152131

Core Technical Specifications

Filter Media Structure: Multi-layer gradient borosilicate microglass composite media, built-in anti-re-entrainment PU drainage foam, double-layer galvanized steel support mesh to prevent media collapse under tank pressure fluctuation

Pressure Operating Parameters

Max Allowable Tank Working Pressure: 1.6 MPa

Normal Stable Running Pressure: 0.7–0.8 MPa

Operating Limits

Compatible Lubricants: Mineral compressor oil, semi-synthetic & fully synthetic screw compressor lubricant

Standard Replacement Cycle

4,000 working hours / 12 months under clean intake air conditions; shorten to 2,000–3,000 hours for dusty factories, high humidity or continuous heavy-load operation. Replace when differential pressure ΔP ≥ 0.08 MPa.

Differential Pressure Replacement Thresholds

Initial pressure drop of brand-new separator: ≤0.015 MPa

Mandatory replacement alarm threshold: ΔP ≥ 0.08 MPa

Sealing & Support Construction

End Caps & Flange: Reinforced anti-rust coated steel flange and top cover with airflow diversion ribs for uniform air distribution

Seal System: Integral full-circle NBR nitrile rubber flange gasket, resistant to high-temperature compressor oil and acidic condensate aging

Inner & Outer Support Cage: Double-layer perforated galvanized steel mesh, structural reinforcement to avoid media deformation under internal tank pressure surges

Key Product Advantages

Core oil separation component to protect downstream pipeline filters and reduce compressor oil consumption

Installed inside the air receiver tank, this separator captures massive fine oil mist generated during screw compression. It drastically cuts oil carryover into post-treatment compressed air pipelines, reduces oil replenishment frequency, and extends service life of downstream medium coalescing filters, ultrafine coalescing filters and activated carbon elements.

High oil holding capacity for stable long continuous operation

Thick deep-pleated gradient microglass matrix stores large volumes of captured lubricant oil. Built-in drainage foam accelerates gravity oil reflux back to the compressor oil sump, slowing pressure rise and reducing unplanned compressor downtime caused by frequent separator replacement.

High-temperature stabilized media, zero fiber shedding to avoid downstream pipeline contamination

Heat-cured borosilicate microglass composite paired with double steel support mesh prevents glass fiber powder shedding into compressed air pipelines, protecting industrial spray guns, laser optical lenses and precision miniature solenoid valves from clogging failures.

Low permanent differential pressure design to cut compressor power consumption

Uniform graded pore layout minimizes internal airflow resistance throughout the full service cycle. Stable low backpressure inside the tank reduces continuous load on the screw airend, lowering long-term factory electricity operating costs.

Working Principle

High-temperature air-oil mixed flow passes through the separator cartridge from outside to inside:

Large residual oil droplets are intercepted by outer drainage foam and flow back to the tank oil sump via gravity;

0.01μm ultra-fine oil micro-aerosols collide and coalesce into large separable liquid oil droplets while passing through multi-layer gradient borosilicate microglass media;

Separated oil flows down the media surface back to the compressor lubrication circuit; clean compressed air passes through the inner support tube and exits the tank to downstream pipeline treatment equipment;

Built-in anti-re-entrainment foam prevents separated liquid oil from being re-carried by high-speed compressed airflow inside the tank.

Application Industries

General manufacturing workshop central air supply, automotive component production lines, small paint booth compressor stations, plastic injection molding auxiliary air supply, laboratory central compressed air systems, food processing factory pneumatic equipment power source, electronic precision assembly workstation air supply.
