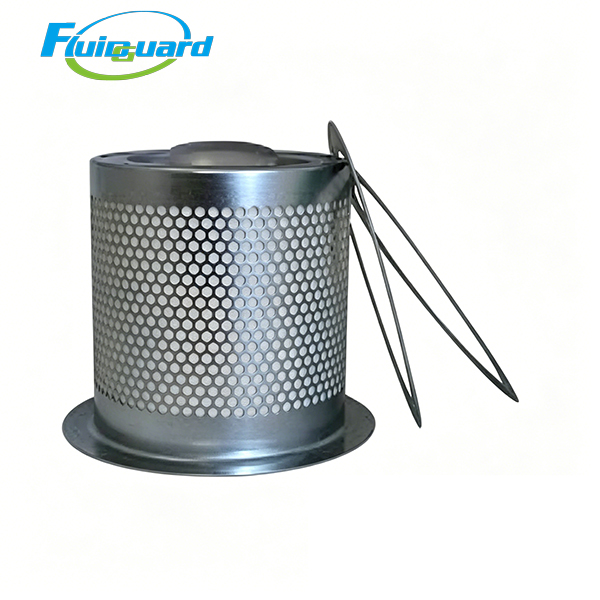

Model : 4940655101
Type : Oil Separators Filters
Replacement for : 4940655101
It coalesces and traps tiny lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination of downstream small pneumatic equipment and dryers, lowers lubricant consumption, ensures clean compressed air output, and extends the whole ma
Part numbers marked "replacement" are not affiliated with the original manufacture.
PN: 4940655101
Type: Built-in cartridge coalescing separator
Media: Imported HV Borosilicate Micro Glass Fiber
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 working hours
Max Working Pressure: 0.7–1.3 MPa
Initial Pressure Drop: ≤ 0.02 MPa
Net Weight: ~1.6 kg
Dimensions
OD: 132 mm
ID: 86 mm
Overall Height: 185 mm
Product Features
Compact multi-layer composite glass fiber media, good oil mist holding capacity, stable separation efficiency for light-load continuous operation
Low-resistance folding structure keeps ultra-low initial pressure drop, reduces small compressor energy consumption
Single-layer anti-static perforated steel support cage, lightweight, anti-corrosion and static explosion-proof, no deformation under normal differential pressure
Double high-temperature Viton O-rings top sealing, completely prevent oil bypass leakage
Product Description
It coalesces and traps tiny lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination of downstream small pneumatic equipment and dryers, lowers lubricant consumption, ensures clean compressed air output, and extends the whole machine service life of small screw compressors.
