Oil Separators Filters

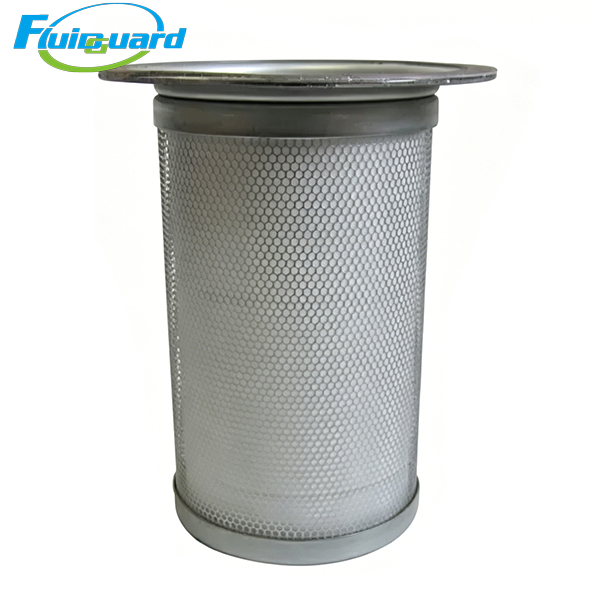

PN: 4930255581

Type: Flange-mounted coalescing separator

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 4.5 kg

Dimensions

Outer Diameter (OD): 215 mm

Inner Diameter (ID): 138 mm

Overall Height: 292 mm

Product Features

Multi-layer composite glass fiber media, large oil holding capacity, stable separation under long continuous load

Optimized pleated low-resistance structure, ultra-low initial pressure drop, effectively reduces compressor power consumption

Double-layer perforated anti-static steel inner & outer support cages, anti-corrosion & static explosion-proof, prevent filter collapse under high differential pressure

High-temperature Viton composite flange gasket, full-temperature leak-proof sealing, avoid oil bypass leakage

Product Description

It fully coalesces and intercepts ultra-fine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, precision processing equipment and drying systems, cuts down compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the complete air compressor system.
