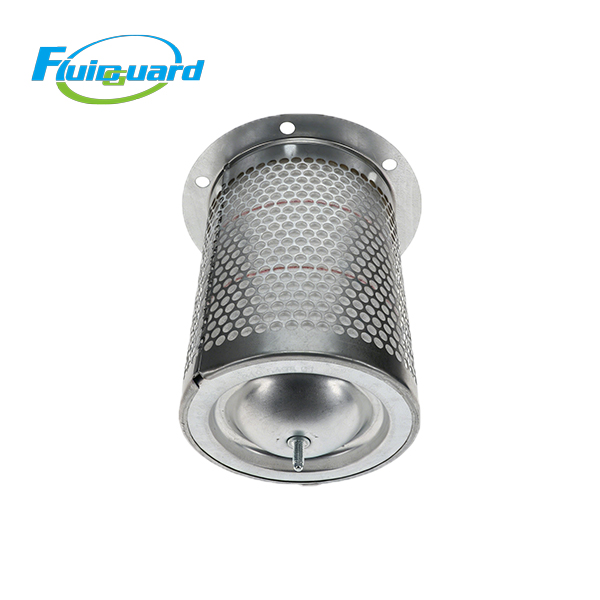

Oil Separators Filters

PN: 2911001300

Type: Built-in flange coalescing separator cartridge

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 3.1 kg

Dimensions

OD: 170 mm

ID: 112 mm

Overall Height: 242 mm

Product Features

Multi-layer composite glass fiber media with good oil storage capacity, stable separation efficiency under long-time continuous operation

Optimized pleated low-resistance structure maintains ultra-low initial pressure drop, effectively reduces power consumption and operating cost of the air compressor

Double-layer full-perforated anti-static steel inner & outer support cages, anti-corrosion and static explosion-proof, prevent filter element collapse under high differential pressure

Integrated high-temperature Viton composite flange gasket, reliable leak-free sealing in full temperature range, avoid oil bypass

Product Description

It fully coalesces and intercepts ultrafine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, precision equipment and dryer systems, cuts down compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the whole air compressor system.
