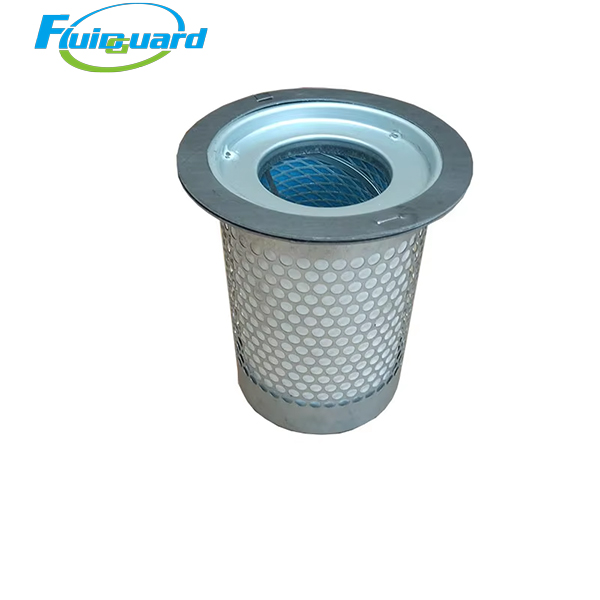

Oil Separators Filters

PN: DA1142

Type: External flange vertical coalescing separator

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 3.4 kg

Dimensions

Outer Diameter (OD): 180 mm

Inner Diameter (ID): 120 mm

Total Height: 262 mm

Product Features

Multi-layer composite glass fiber media with large oil mist holding capacity, stable separation efficiency under continuous heavy load

Optimized dense pleated low-resistance structure maintains ultra-low initial pressure drop, reduces compressor power consumption and operating costs

Double-layer full-perforated anti-static steel inner & outer support cages, anti-corrosion and static explosion-proof, prevents filter collapse under high differential pressure

Integral high-temperature resistant composite flange gasket, zero oil bypass leakage in full operating temperature range

Product Description

It coalesces and intercepts ultra-fine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, precision processing equipment and drying systems, cuts down compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the complete air compressor system.
