Oil Separators Filters

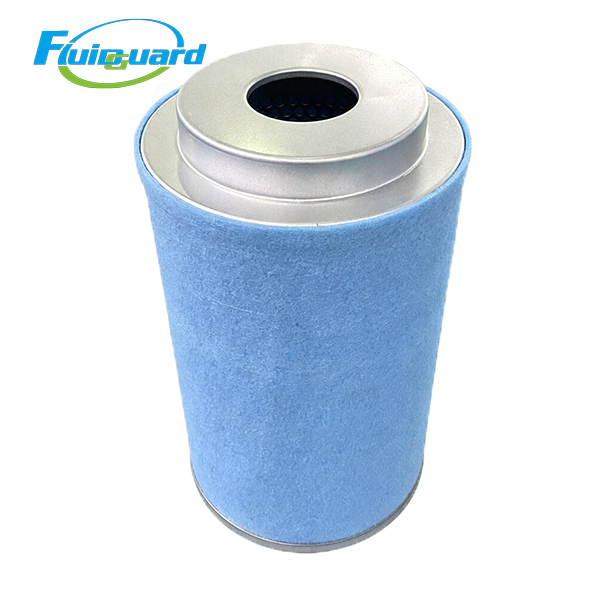

PN: 29110110702

Type: Flange built-in coalescing separator cartridge

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 4.8 kg

Dimensions

Main Body OD: 232 mm

Inner Core ID: 148 mm

Overall Height: 286 mm

Product Features

Multi-layer composite HV glass fiber filter media, large oil mist holding capacity, stable separation efficiency under long continuous operation

Optimized dense pleat low-resistance structure maintains ultra-low initial pressure drop, effectively cuts down compressor power consumption and operating cost

Double-layer full-perforated anti-static steel inner & outer support cages, anti-corrosion and static explosion-proof, prevents filter collapse under high pressure difference

Integral high-temperature Viton composite flange gasket, no oil bypass leakage in full working temperature range

Product Description

It fully coalesces and intercepts ultrafine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively avoids oil contamination to downstream pneumatic pipelines, precision processing equipment and air dryer systems, reduces compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the complete air compressor system.
