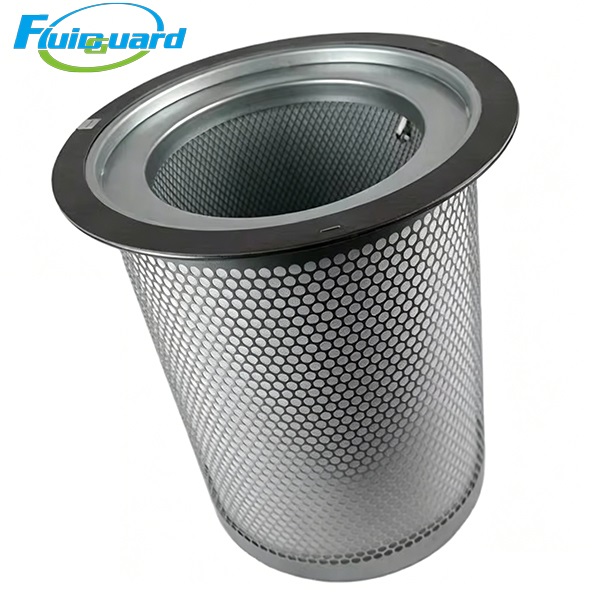

Model : 2116010157
Type : Oil Separators Filters
Replacement for : 2116010157
It thoroughly coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination to downstream pneumatic pipelines and equipment, reduces compressor lubricating oil consumption, maintains stable clean compressed ai
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 2116010157
Type: Flange-mounted Coalescing Separator
Media: Imported HV Borosilicate Micro Glass Fiber
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–4000 working hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature Range: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Net Weight: 4.1 kg
Dimensions
OD: 198 mm
ID: 135 mm
Overall Height: 270 mm
Product Features
Multi-layer composite HV glass fiber media efficiently traps ultra-fine oil mist particles
Optimized low-resistance structure lowers initial pressure drop to cut power consumption
Anti-static perforated steel support cage, anti-corrosion and explosion-proof
High-temperature resistant Viton rubber gasket for long-term leak-free sealing
Product Description
It thoroughly coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination to downstream pneumatic pipelines and equipment, reduces compressor lubricating oil consumption, maintains stable clean compressed air supply, and extends the overall service life of the air compressor system.
