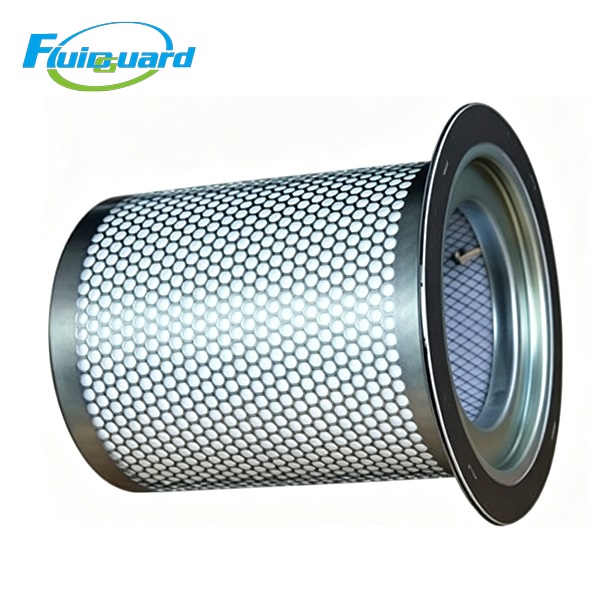

Model : 6221374000
Type : Oil Separators Filters
Replacement for : 6221374000
It efficiently coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination to downstream pneumatic pipelines and equipment, reduces compressor lubricating oil consumption, maintains stable clean compressed a
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 6221374000
Type: Flange-mounted Coalescing Separator
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 working hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature Range: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Net Weight: 4.2 kg
Dimensions
OD: 170 mm
ID: 108 mm
Overall Height: 370 mm
Product Features
High-capacity multi-layer glass fiber media fully traps fine oil mist particles
Ultra-low initial pressure drop effectively cuts compressor power consumption
Anti-static perforated steel support cage, anti-corrosion and explosion-proof
High-temperature resistant Viton rubber gasket for long-term stable sealing
Product Description
It efficiently coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It avoids oil contamination to downstream pneumatic pipelines and equipment, reduces compressor lubricating oil consumption, maintains stable clean compressed air supply, and extends the overall service life of the air compressor system.
