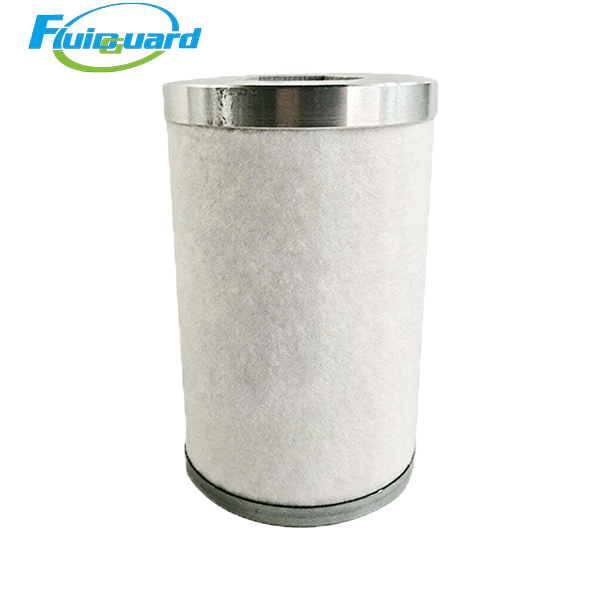

Model : 575116310
Type : Oil Separators Filters
Replacement for : 575116310
It efficiently separates lubricant oil mist mixed in compressed air and strictly controls residual oil content below 3 ppm. It effectively prevents oil contamination to downstream pneumatic tools and pipelines, lowers compressor oil consumption, ensures clean compressed air output, and extends the o
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 575116310
Media: HV Borosilicate Glass Fiber
Filtration: 0.1 μm
Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 hours
Max Pressure: 0.7–1.3 MPa
Temperature Range: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Weight: 0.24 kg
Dimensions
OD: 90 mm
Height: 145 mm
Connection: Top thread / push-in interface
Features
Multi-layer high-efficiency glass fiber media for complete oil mist interception
Optimized low-resistance structure reduces power consumption of compressors
Compact cartridge design, fast disassembly and replacement
Anti-static and anti-corrosion metal housing
High-temperature Viton rubber seal for stable long-term sealing performance
Description
It efficiently separates lubricant oil mist mixed in compressed air and strictly controls residual oil content below 3 ppm. It effectively prevents oil contamination to downstream pneumatic tools and pipelines, lowers compressor oil consumption, ensures clean compressed air output, and extends the overall service life of the air compressor system.
