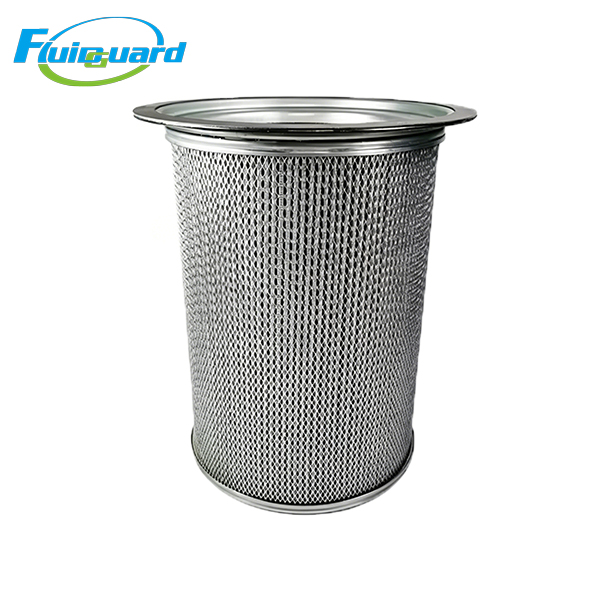

Oil Separators Filters

Part No: 04555974

Filter Media: Multi-layer HV borosilicate micro glass fiber composite coalescing media

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Net Weight: 1.23 kg

Dimensions (mm)

Flange Outer Diameter: 140

Cartridge Outer Diameter: 102

Central Inner Hole Diameter: 70

Overall Height: 170

Application Scenarios

Auto repair workshops, small precision mechanical processing, plastic injection molding, electronic component assembly, packaging machinery, textile printing factories, small factory central compressed air supply stations

Product Features

Multi-gradient high-density glass fiber filter media with stable oil mist holding capacity, effectively prevents oil saturation under medium continuous loads and maintains ultra-low residual oil output throughout full service cycle.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion and shock resistant. Eliminates static ignition risks inside oil mist environment, filter media will not deform or collapse under long full-load running.

High-temperature nitrile gasket provides tight sealing under frequent start-stop and temperature fluctuation, avoiding oil bypass and excessive oil carry-over into clean compressed air.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via the central scavenge tube for recycling, greatly cutting lubricating oil consumption and extending the overall machine maintenance interval.

It provides reliable protection for downstream refrigerated dryers, adsorption dryers, small precision pneumatic valves and laser cutting equipment, lowering failure rate and maintenance cost of post-processing air purification system.
