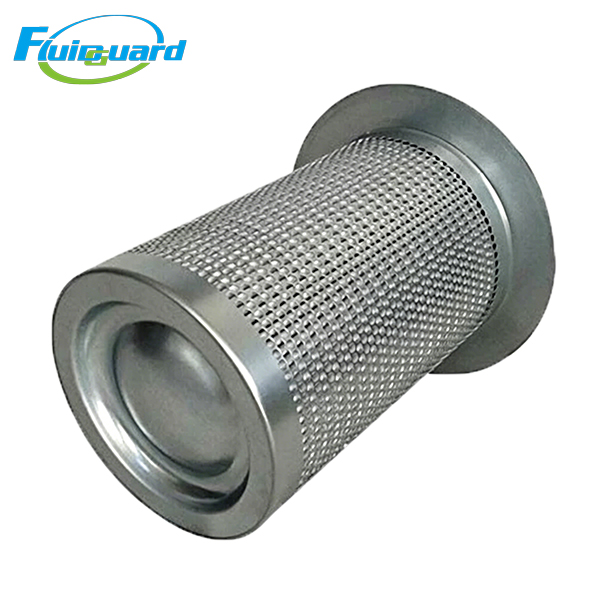

Oil Separators Filters

Part No: 6.3795.0

Filter Media: Multi-layer HV Borosilicate Micro Glass Fiber composite media

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Net Weight: 0.75 kg

Dimensions (mm)

Flange Outer Diameter: 132

Cartridge Outer Diameter: 98

Central Inner Hole Diameter: 62

Overall Height: 168

Application Scenarios

Small auto repair shops, dental equipment, laboratory precision instruments, small packaging machinery, hobby workshop pneumatic tools, electronic small component assembly

Product Features

Compact multi-gradient glass fiber media with stable oil storage capacity, prevents oil saturation under light continuous loads, maintains ultra-low residual oil output full-cycle.

Perforated galvanized anti-static inner & outer support cages, corrosion & shock resistant; eliminates static ignition risks inside oil mist, filter media no deformation under long full-load operation.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation to trap micron lubricant aerosol inside compressed air, limiting outlet residual oil ≤3ppm. Separated lubricant flows back to compressor host via central return tube for circulation, greatly cutting oil consumption and extending maintenance cycle.

It provides reliable protection for downstream small refrigerated dryers, precision pneumatic valves and lab instruments, lowering failure rate and maintenance cost of post-processing air purification equipment.
