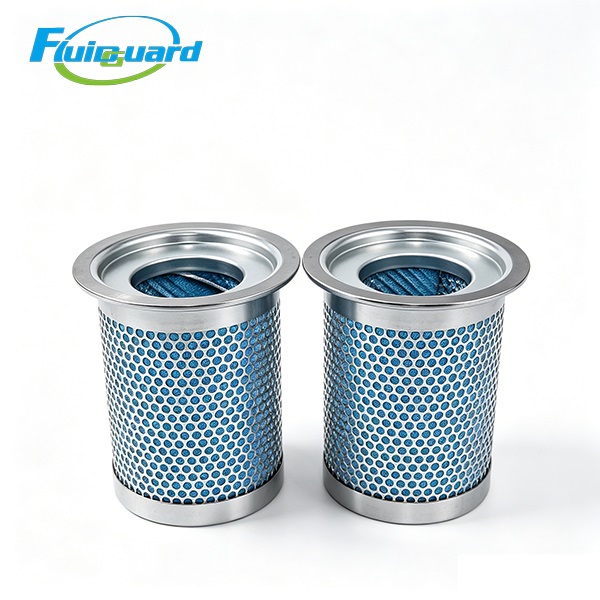

Oil Separators Filters

Part No: 55170200230G

Filter Media: Imported HV borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3000–4000 working hours

Max Working Pressure: 0.7–1.3 MPa

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 2.3 kg

Dimensions (mm)

Flange Outer Diameter: 200

Cartridge Outer Diameter: 170

Central Inner Hole Diameter: 92

Overall Height: 230

Application Scenarios

Auto parts manufacturing, heavy precision machining, plastic injection molding, electronic assembly lines, laser cutting workshops, mining & construction sites, medium & large factory central compressed air supply stations

Product Features

Multi-gradient high-density glass fiber media with ultra-large oil mist holding capacity. It resists oil saturation under long-term medium & heavy continuous loads and maintains stable ultra-low residual oil output throughout the full service cycle.

Uniform deep-pleated low-resistance cylindrical structure with ultra-low initial pressure drop. Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion and resistant to pressure surges. It eliminates static ignition risks in oil mist environments, and filter media will not deform or collapse under long full-load operation.

Supporting high-temperature nitrile gaskets maintain tight sealing under frequent start-stop and sharp temperature changes, effectively preventing oil bypass and excessive residual oil in compressed air.

Every separator is fully tested for coalescing efficiency, burst pressure and airflow differential pressure before delivery to guarantee consistent stable mass production performance.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via the central scavenge tube for recycling, greatly cutting lubricating oil consumption and extending the overall machine maintenance interval.

It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, heavy-duty precision pneumatic components and long-distance industrial air pipelines, lowering maintenance expenses of post-processing purification equipment.
