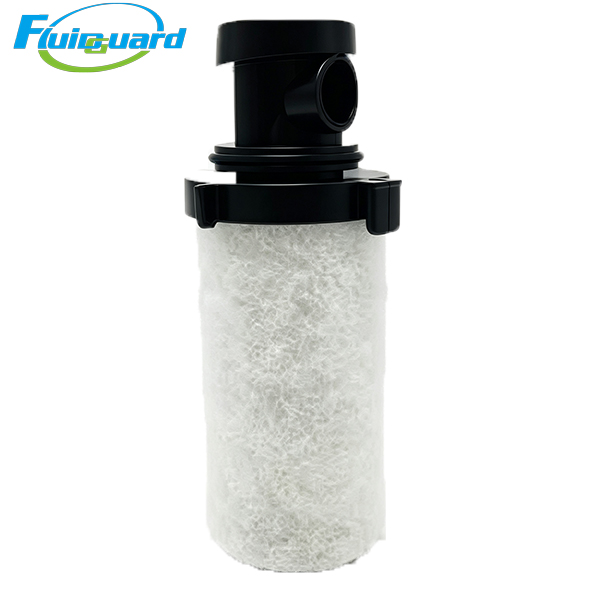

020AA Coalescing Filter

Model : 020AA

Type : Compressor Belts

Replacement for : 020AA

Combined micro glass fiber and high-efficiency activated carbon media removes oil mist and gaseous oil vapor. Stable operation under 1–80°C and 16 bar pressure with low airflow resistance, widely adopted in high-purity air treatment for medical, food and electronic manufacturing industries.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Key Features

Multi-layer composite adsorption medium

Built-in front 0.01μm micro glass fiber coalescing layer + high-density granular activated carbon bed. It intercepts residual micro oil mist first, then thoroughly adsorbs gaseous oil vapor, hydrocarbon and peculiar smells which coalescing filters cannot eliminate, achieving oil-vapor-free clean air.

Double stainless steel reinforced structure

Inner and outer perforated stainless steel mesh locks filter material firmly, preventing carbon powder leakage and medium deformation under long-term airflow impact. Integrated plastic end caps with integral EPDM sealing rings completely avoid bypass air leakage.

Low pressure drop energy-saving design

Optimized layered layout maximizes effective airflow area to maintain low initial pressure loss, effectively reducing continuous power consumption of air compressors. High-capacity activated carbon extends service cycle and reduces replacement frequency.

Application Scenarios

System configuration: Final-stage terminal filter, installed after P pre-filter and AA high-efficiency coalescing filter in multi-stage purification system.

Applicable industries: Pharmaceutical production, food & beverage processing, semiconductor electronics, laboratory high-purity gas, medical devices, top-grade spraying, optical processing.
