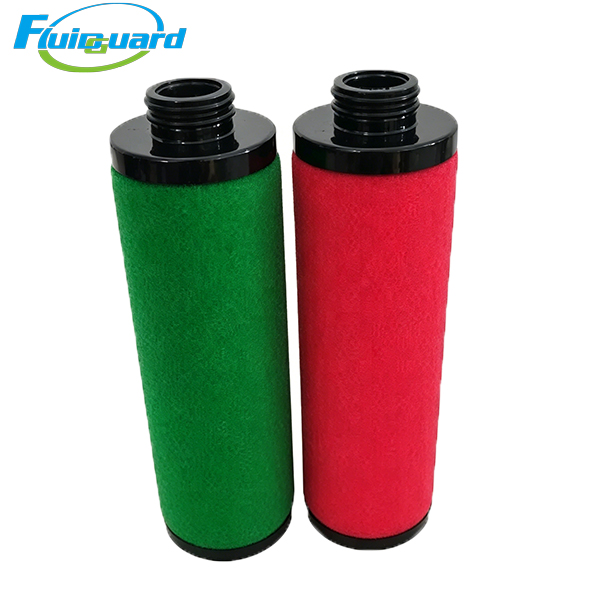

Coalescing Filters

Main Features

Multi-layer hydrophobic borosilicate glass fiber depth media

Imported gradient microfiber composite material with independent oleophobic & hydrophobic drainage foam outer layer. It efficiently traps micro oil mist, water aerosols and fine solid dust after primary pre-filtration.

Double 304 stainless steel reinforced fully sealed cartridge

Inner and outer perforated stainless steel support mesh locks filter media tightly to prevent deformation under long-term airflow vibration. Reinforced plastic end caps with integrated EPDM sealing ring eliminate unfiltered air bypass leakage, excellent resistance to compressor oil, water and weak industrial chemical corrosion.

Low pressure drop energy-saving deep pleated design

Uniform deep folding layout maximizes effective filtration area to maintain ultra-low initial pressure loss, effectively reducing continuous power consumption of air compressors and cutting long-term operation costs. Large dirt holding capacity delays clogging and extends service cycle.

Main Applications

System configuration: Second-stage core precision coalescing filter in small-flow multi-stage compressed air purification system, installed after P-grade dust pre-filter and before V-grade activated carbon terminal filter.

Applicable industries: Precision electronic assembly, dental medical equipment, laboratory high-purity gas supply, small batch high-gloss spraying, miniature laser cutting, food & beverage small production lines.

Core function: Deeply remove trace oil mist, tiny water droplets and fine solid contaminants from compressed air, prevent oil contamination to precision pneumatic valves, optical lenses and finished products, produce ultra-clean compressed air meeting Class 1 high purity requirements of ISO 8573-1.
