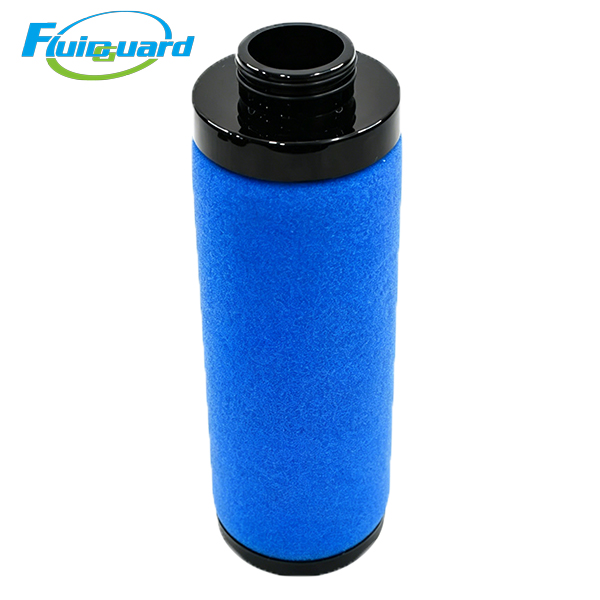

Air Filters

Part No: 2901300103

Filter Media: Silicon-free multi-layer gradient borosilicate microglass fiber composite, outer hydrophobic self-drain foam, reinforced plastic inner support cage

Filtration Performance:

Absolute solid particle retention: 1 μm

Max residual liquid oil mist: ≤0.1 ppm

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Differential Pressure: ≤0.010 MPa

Replacement Trigger Differential Pressure: ≥0.06 MPa

Standard Service Life: 4,000 working hours or 12 months

Physical Parameters: Net weight 110g, length 165mm, OD 57mm

Typical Application Scenarios

Small & medium machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, small lithium battery pilot labs, refrigerated dryer pre-filtration, factory general central pneumatic pipeline pretreatment

Product Features

Silicon-free borosilicate microglass depth media eliminates silicon precipitation risk, fully compliant with automotive topcoat and optical polishing production requirements

Integrated light blue polyurethane top cap with built-in EPDM O-ring seal, resistant to high temperature and synthetic compressor lubricant oil, zero air leakage after installation

Thickened internal support cage resists long-term continuous airflow impact; filter media will not deform or collapse, maintaining consistent low pressure drop during full service cycle

Standard bayonet plug-in design, tool-free quick replacement to minimize production line downtime
