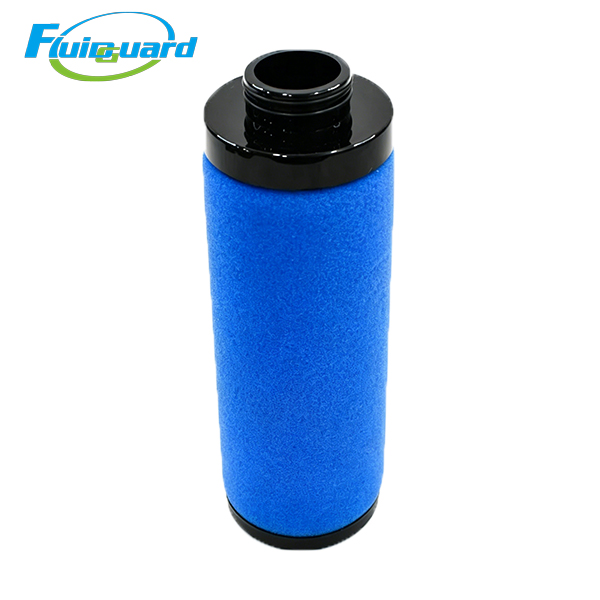

Model : 2901300104
Type : Air Filters
Replacement for : 2901300104
Medium & small machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, lithium battery pilot workshops, general factory central pneumatic pipeline pretreatment
Part numbers marked "replacement" are not affiliated with the original manufacture.
Part No: 2901300104
Filtration Performance:
Absolute solid particle retention: 1 μm
Max residual liquid oil mist: ≤0.1 ppm
Max Operating Pressure: 1.6 MPa
Operating Temperature Range: 2℃ ~ 65℃
Initial Pressure Drop: ≤0.010 MPa
Replacement Trigger Differential Pressure: ≥0.06 MPa
Standard Service Life: 4,000 working hours or 12 months
Dimensions: Length 175 mm, Outer Diameter 67 mm, Net Weight 165 g
Application Scenarios
Medium & small machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, lithium battery pilot workshops, general factory central pneumatic pipeline pretreatment
Product Features
Silicon-free microglass depth media prevents silicon precipitation, fully compliant with high-end automotive topcoat and optical polishing production requirements
Integrated one-piece polyurethane top cap with built-in EPDM O-ring seal, resistant to high temperature and synthetic compressor lubricant oil, zero air leakage after installation
Thickened internal support cage resists long-term continuous airflow impact; filter media will not deform or collapse, maintaining consistent low pressure drop during full service cycle
Standard bayonet plug-in structure, tool-free quick replacement to minimize production line downtime
