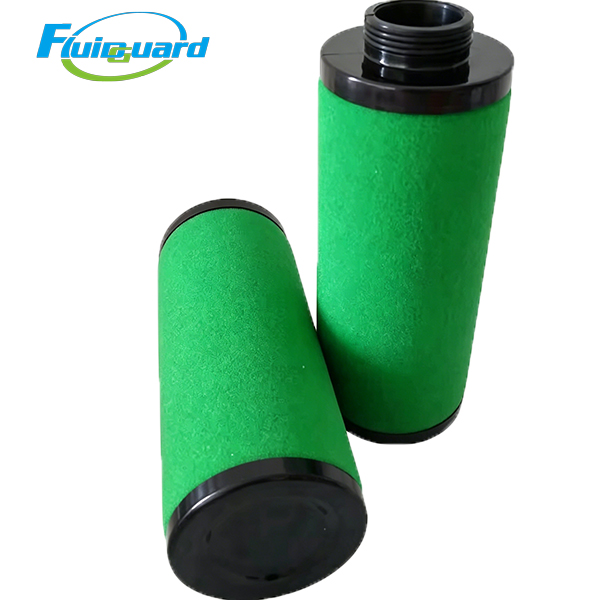

Air Filters

Part Number: 2901300204

Filtration & Adsorption Performance:

Absolute solid particle interception ≥0.01 μm

Residual oil vapor & hydrocarbon ≤0.003 ppm

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.015 MPa

Replacement Alarm Differential Pressure: ≥0.06 MPa

Standard Service Life: 4,000 running hours or 12 months

Physical Dimensions: Length 167 mm, Outer Diameter 61 mm, Net Weight 161 g

Application Scenarios

Medical breathing air systems, pharmaceutical sterile filling lines, semiconductor & electronic micro-assembly cleanrooms, automotive high-gloss clear coat spray production, food & beverage odor-free packaging, laboratory high-precision analytical instruments, optical lens polishing, cosmetic sterile filling equipment, lithium battery ultra-clean process air supply

Product Features

Composite dual-layer design separates solid/aerosol filtration and gas adsorption; upstream microglass greatly reduces carbon contamination load and extends carbon service life

Reinforced internal perforated support cage stabilizes carbon bed; carbon granules will not shift, sag or channel under long-term steady airflow

One-piece integrated black urethane top cap with built-in O-ring seal, high temperature & lubricant resistant, zero air leakage after installation

Compact cylindrical plug-in bayonet structure, tool-free quick replacement to minimize production downtime

Product Description

This QD carbon element is the final purification barrier to eliminate trace oil vapor, producing odorless ultra-high purity compressed air for strict industrial processes. Multi-stage upstream coalescing filtration significantly reduces carbon saturation speed and lowers overall air treatment maintenance costs.
