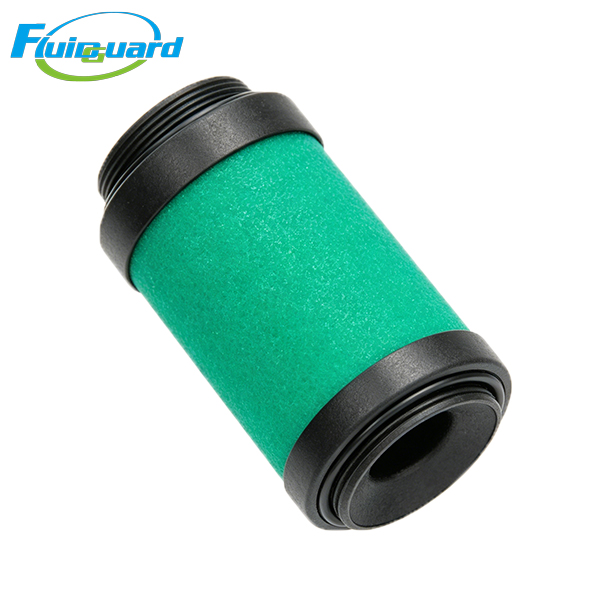

Air Filters

Part No: 2901200303

Filtration Performance:

Absolute solid particle retention:1 μm

Max residual liquid oil mist:≤0.1 ppm

Max Operating Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 66℃

Initial Pressure Drop: ≤0.005 MPa

Replacement Trigger Differential Pressure: ≥0.035 MPa

Standard Service Life: 4,000 working hours or 12 months

Dimensions: Height 162 mm, Outer Diameter 60 mm, Inner Diameter 27 mm

Application Scenarios

Medium machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, lithium battery pilot workshops, general factory central pneumatic pipelines

Product Features

High dirt holding capacity pleated fiber media, maintains stable low pressure drop throughout full service cycle

Reinforced internal & external plastic support cage, anti-collapse under long-term continuous airflow impact

Standard bayonet plug-in structure, tool-free quick replacement to minimize production downtime

Silicon-free filter media, no silicon precipitation risk, fully suitable for automotive topcoat and optical polishing processes
