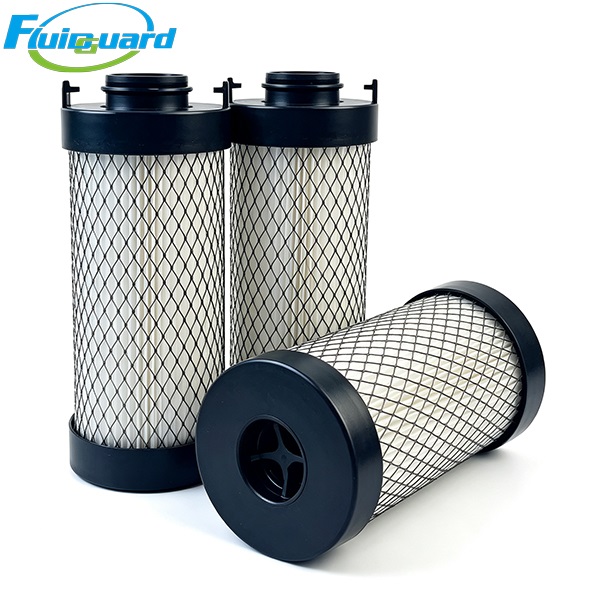

Model : 0070EC
Type : Air Filters
Replacement for : 0070EC
It adopts multi-layer gradient borosilicate glass fiber filter media with inner and outer stainless steel support meshes, paired with integrated EPDM sealing gaskets to prevent air bypass. It traps 0.01 μm ultra-fine oil mist and fine solid particles, reaching 99.99% oil mist separation efficiency a
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Main Features
High precision coalescing medium
Multi-layer gradient borosilicate glass fiber captures 0.01μm micro oil mist and fine dust, oil separation efficiency ≥99.99%, residual oil ≤0.01ppm. Built-in hydrophobic drainage layer speeds liquid discharge and avoids re-atomization of oil & water.
Stable durable structure
Inner & outer stainless steel perforated support mesh prevents filter media collapse under long airflow impact. Integrated EPDM rubber gaskets ensure full sealing to stop unfiltered air bypass. Reinforced plastic end caps resist vibration for 24h continuous operation.
Low energy loss & long service life
Low initial pressure drop reduces compressor power consumption. Standard service cycle reaches 2000 running hours; replace when differential pressure rises to 0.05MPa. Max working pressure 16bar, working temperature range 1~80°C.
Easy installation
Cylindrical plug-in design, fast replacement without special tools; disposable element, not washable for repeated use.
Main Applications
High-gloss paint spraying industry
Laser cutting & laser welding equipment
Precision electronic component assembly
Food packaging & pharmaceutical production
Laboratory gas supply and high-standard pneumatic automation lines
