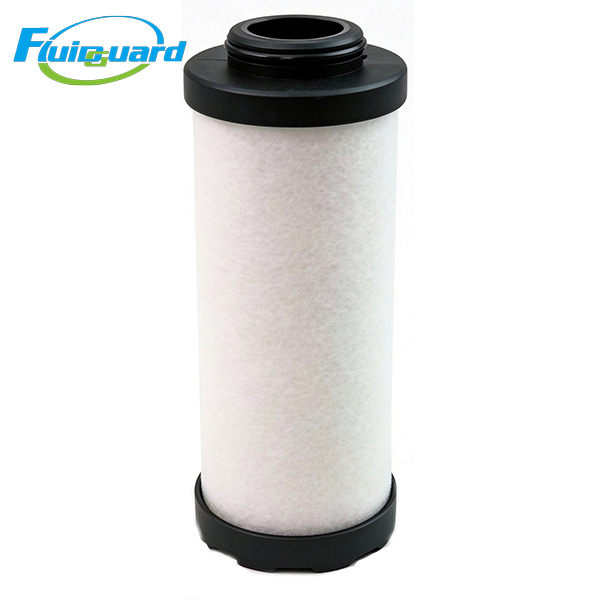

CE0018C Coalescing Filter

Model : CE0018C

Type : Air Filters

Replacement for : CE0018C

Constructed with multi-layer gradient borosilicate glass fiber media, double stainless steel support mesh and integrated EPDM rubber sealing gaskets, this element can capture tiny 0.01 μm oil mist and fine solid particles. It achieves an oil mist separation efficiency of 99.99%, limiting residual oi

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Filtration Performance Description

Fully compliant with ISO 8573.1 compressed air purity standards, superior to CE0018B general-purpose filter:

Solid particle interception precision: 0.01 μm; minimum captured oil mist aerosol: 0.01 μm

Coalescing separation efficiency for oil mist and liquid water: ≥99.99%

Initial pressure drop: ≤0.015 MPa, low energy loss for air compressors

Replacement differential pressure alarm threshold: ≥0.05 MPa

Standard service life: 2,000 running hours

Working range: Max operating pressure 16 bar, operating temperature 1°C ~ 80°

Application Description

Designed for production lines requiring high-purity compressed air: high-gloss painting, laser cutting, precision electronic assembly, pharmaceutical auxiliary gas supply, food packaging and laboratory instrument gas supply. It greatly reduces oil pollution load on the rear activated carbon filter and extends its service life by over 60%.
