Oil Separators Filters

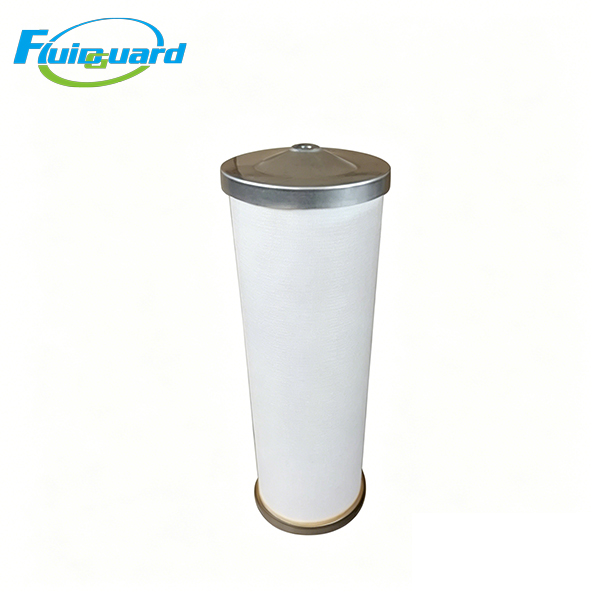

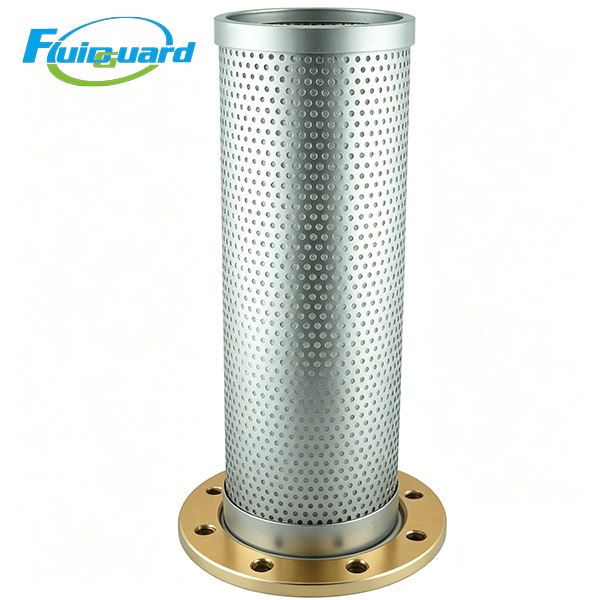

Model: P-CE03-538

Type: Built-in Flange Air Oil Separator Filter Element

Core Technical Specifications

Filter Media: Imported German HV gradient borosilicate micro glass fiber composite

Filtration Precision: 0.1 μm submicron oil mist aerosol

Separation Efficiency: ≥99.99%

Residual Oil Content of Outlet Compressed Air: ＜3 ppm

Overall Dimension: OD 150mm, ID 100mm, Height 310mm, Flange Dia 220mm

Max Working Pressure: 1.6 MPa / 16 bar

Max Continuous Operating Temperature: ≤110℃

Initial Differential Pressure: ≤0.02 MPa

Replacement Warning Differential Pressure: ≥0.1 MPa

Installation: Multi-hole galvanized steel flange with high-temperature composite sealing gasket

Inner & Outer Protection: Double-layer perforated galvanized steel support mesh

Key Product Features

High-efficiency Air-Oil Coalescing Separation

Gradient layered glass fiber fully captures tiny oil mist mixed in high-temperature oil-gas mixture. Micro oil droplets collide and polymerize into large liquid oil, which flows back to the oil tank via built-in oil return pipe by gravity. It drastically reduces oil carryover rate, cuts lubricant consumption, and prevents oil contamination of downstream dryers, pipeline and terminal pneumatic equipment.

Low Pressure Drop Energy-saving Design

Uniform deep-pleated filter media expands effective filtration area significantly. Stable low airflow resistance is maintained under long-term full-load continuous operation, eliminating extra power loss caused by high back pressure and lowering overall compressor operation cost.

Super Large Oil & Dirt Holding Capacity

Multi-depth gradient composite structure stores massive separated lubricating oil, carbon sludge and metal wear debris, prolongs maintenance intervals and reduces production downtime for filter replacement.

Double-layer Galvanized Steel Reinforced Mesh

Inner and outer perforated metal cages resist high-speed airflow impact, prevent filter media collapse, deformation and fiber shedding, and eliminate secondary fiber pollution inside the compressor oil circulation system.

High-temperature Anti-leak Flange Sealing System

Heat-resistant composite flange gasket forms tight sealing after bolt fastening. Zero oil-air leakage occurs under frequent temperature and pressure fluctuation, ensuring stable separation efficiency without long-term attenuation.

Working Principle

High-temperature oil-gas mixture discharged from screw airend enters the separator tank and flows through the outer layer of oil separator core. Large oil droplets are separated by gravity at first; residual 0.1μm micro oil mist is intercepted and coalesced by gradient glass fiber media, aggregated into heavy liquid oil that drips back to the oil tank for circulating lubrication. Clean low-oil compressed air flows out from central channel to post-processing purification pipeline.

Application & Industries

Widely used in machinery manufacturing, automotive parts processing, packaging printing, textile factories, industrial spray painting, food processing, medium laser cutting and factory centralized air supply systems.
