Oil Separators Filters

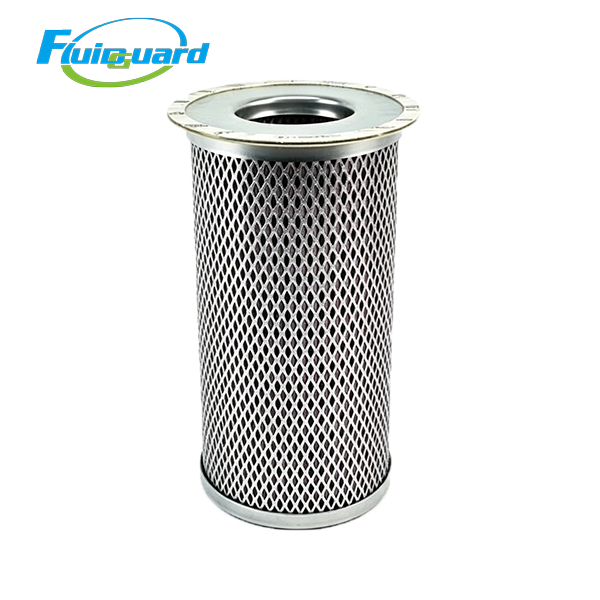

Part No: B006700770013

Type: Single-flange built-in cylindrical coalescing air/oil separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–5200 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 3.1 kg

Dimensions (mm)

Top Flange Outer Diameter: 225

Cartridge Outer Diameter: 162

Central Inner Hole Diameter: 96

Overall Height: 330

Application Scenarios

Auto parts manufacturing, medium machining workshops, plastic injection molding, electronic assembly production lines, packaging factories, mining supporting air supply, medium factory central compressed air stations

Product Features

Multi-gradient high-density borosilicate glass fiber media with ultra-large oil mist holding capacity, resisting oil saturation under long-term medium-heavy continuous load and maintaining stable separation efficiency through full service cycle.

Uniform deep-pleated low-resistance cylindrical structure with ultra-low initial pressure drop; differential pressure rises slowly during full-cycle operation to effectively reduce power consumption of ELGI medium-power screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion and pressure-fluctuation resistant; filter media will not collapse under long full-load running. Anti-static design eliminates static ignition risks in oil mist environment.Matched high-temperature composite fiber gasket ensures reliable sealing under drastic day-night temperature changes, preventing oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via central scavenge tube for recycling, greatly lowering lube oil consumption.It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic components and long-distance air pipelines, extending maintenance interval and overall service life of the entire compressor set and supporting post-processing purification equipment.
