Oil Separators Filters

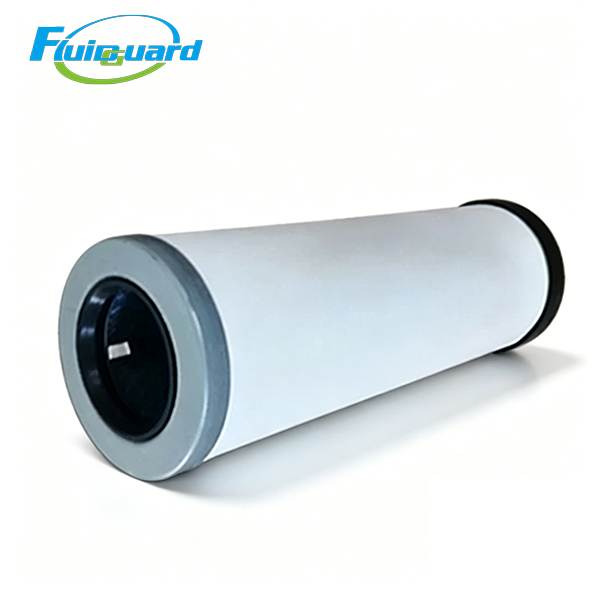

Part No: 59002671

Type: Vertical cylindrical external air/oil separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 1.6 kg

Dimensions (mm)

Outer Diameter: 116

Inner Hole Diameter: 62

Overall Height: 280

Application Scenarios

Auto repair workshops, machining plants, plastic injection molding, electronic assembly lines, food processing, small & medium factory central compressed air stations, mining & construction supporting equipment

Product Features

Multi-gradient high-density borosilicate glass fiber media with strong oil mist holding capacity, anti-oil saturation under long-term continuous medium load, stable separation efficiency throughout full service cycle.

Uniform deep-pleated low-resistance cylindrical structure with ultra-low initial pressure drop; differential pressure rises slowly during full-cycle operation to effectively reduce compressor power consumption.

Integral anti-corrosion metal shell with built-in anti-static support mesh, resistant to pressure fluctuation and shock; eliminates static ignition risks in oil mist environment.

Standard vertical cartridge structure with integrated fluorine rubber end caps, excellent high & low temperature resistance, tight sealing without oil leakage under frequent start-stop and drastic temperature changes.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via the bottom return channel for circulation, greatly lowering lube oil consumption.It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic components and air transmission pipelines, extending maintenance interval and overall service life of the whole compressor unit and supporting post-processing purification equipment.
