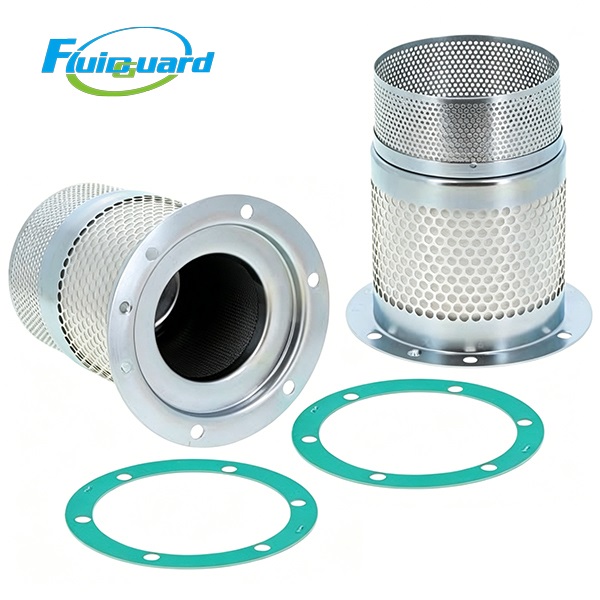

Oil Separators Filters

Part No: 982628045

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: ~2.4 kg

Dimensions (mm)

Flange Outer Diameter: 208

Cartridge Outer Diameter: 150

Central Inner Hole Diameter: 94

Overall Height: 250

Application Scenarios

Auto parts manufacturing, medium machining workshops, plastic injection molding, electronic assembly lines, food & beverage processing, medium factory central compressed air stations

Product Features

Multi-gradient high-density borosilicate glass fiber media with excellent oil mist holding capacity, resisting oil saturation under long-term medium-heavy continuous load and maintaining stable separation efficiency through full service cycle.

Integrated internal flow deflector optimizes airflow distribution; uniform deep-pleated low-resistance structure delivers ultra-low initial pressure drop, with slow differential pressure rise to cut power consumption of medium-power screw compressors effectively.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion and pressure-fluctuation resistant; filter media will not collapse under long full-load running. Anti-static design eliminates static ignition risks in oil mist environment.

Matched high-temperature composite gasket ensures reliable sealing under drastic day-night temperature changes, preventing oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via central scavenge tube for recycling, greatly lowering lube oil consumption.It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic components and long-distance air pipelines, extending maintenance interval and overall service life of the entire compressor set and supporting post-processing purification equipment.
