Oil Separators Filters

Key Product Features

Two-stage integrated composite hydrophobic glass fiber media

Combines front 0.3μm pre-filter layer and rear 0.01μm ultra-fine coalescing microfiber in one cartridge. It simultaneously intercepts coarse dust, suspended water mist and aerosol ultra-fine oil mist without separate pre-filter installation. Condensed oil and water drain downwards to the filter bowl by gravity to avoid secondary mist re-entrainment, fully complying with compressed air purification standards for precision equipment and cleanrooms.

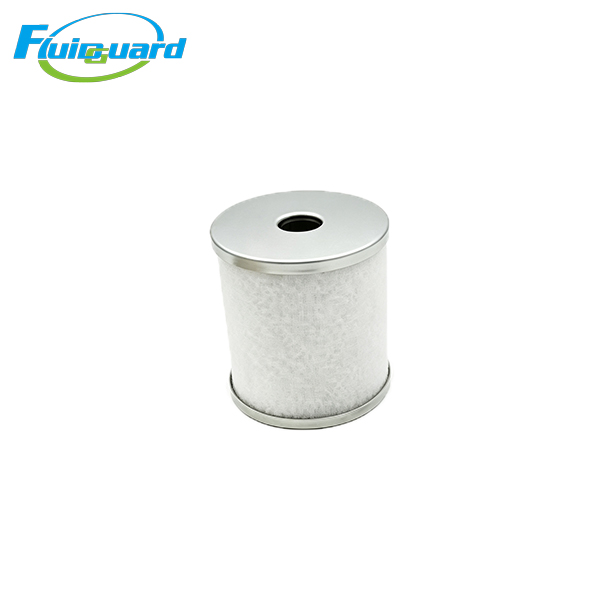

Compact all-aluminum fully sealed reinforced cartridge

Integrated die-cast aluminum upper & lower end caps with integrated NBR sealing ring, eliminating air bypass leakage completely. Perforated metal inner & outer support frames lock filter media firmly, resisting deformation and airflow channeling under long-term stable airflow, with excellent anti-corrosion performance against condensate and diluted compressor oil.

Low pressure drop energy-saving radial flow design

Uniformly deep-folded dual-stage filter media maximizes effective filtration area, maintaining ultra-low initial differential pressure during continuous operation, reducing compressor load and power consumption. Optimized inside-out radial airflow eliminates turbulence and slows pressure rise during long-term operation.

Application Industries

Semiconductor wafer production, precision electronic assembly, optical lens processing

Pharmaceutical sterile workshops, medical & dental pneumatic equipment, laboratory high-purity gas supply

High-gloss automotive coating spraying, clean room automation, precision measuring instruments

High-standard laser cutting equipment, food aseptic filling production lines

Brief Overview

The unique dual-layer composite filter media integrates coarse pre-filtration and ultra-fine oil mist coalescing into one unit, simplifying pipeline layout and reducing equipment footprint. Operating stably within 5°C~60°C under maximum 1.0 MPa pressure, it delivers low-oil ultra-clean compressed air for precision industrial production and laboratory environments requiring strict air cleanliness standards.
