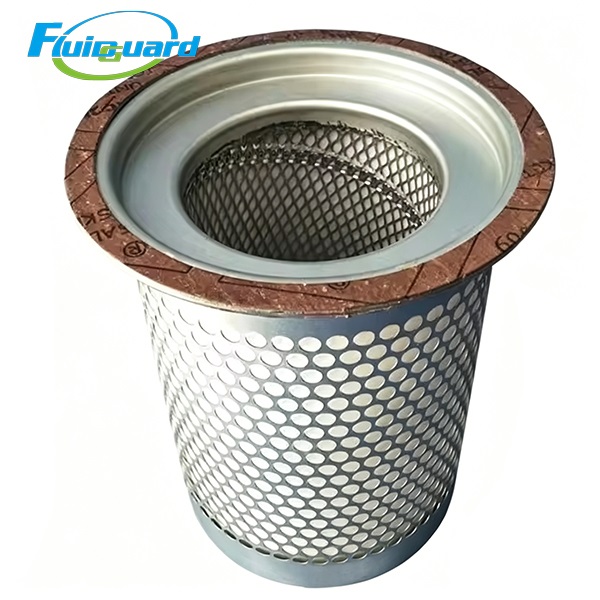

Oil Separators Filters

Part No: 92754688

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 4000–5600 working hour

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 5.13 kg

Dimensions (mm)

Flange Outer Diameter: 236

Cartridge Outer Diameter: 168

Central Inner Hole Diameter: 108

Overall Height: 264

Application Scenarios

Automotive parts manufacturing, heavy precision machining, plastic injection molding, electronic assembly lines, laser cutting workshops, food & pharmaceutical production, large factory central compressed air supply stations, mining & metallurgy air systems

Product Features

Multi-gradient high-density glass fiber media with ultra-large oil mist holding capacity. It resists oil saturation under long-term heavy continuous loads and maintains stable separation efficiency throughout the full service cycle.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion and resistant to pressure surges. It eliminates static ignition risks in oil mist environments, and filter media will not deform or collapse under long full-load operation.

Supporting high-temperature nitrile gaskets maintain tight sealing under frequent start-stop and sharp temperature changes, effectively preventing oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via the central scavenge tube for recycling, greatly cutting lubricating oil consumption and extending the overall machine maintenance interval.

It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic components, laser cutting equipment and long-distance air pipelines, lowering maintenance expenses of post-treatment purification equipment.
