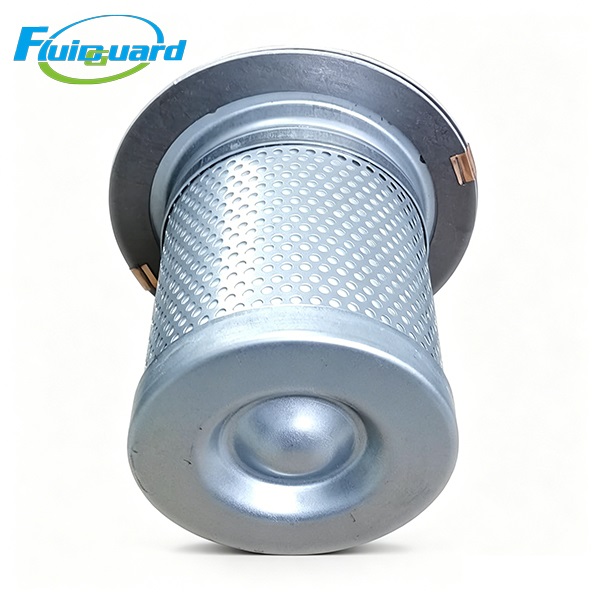

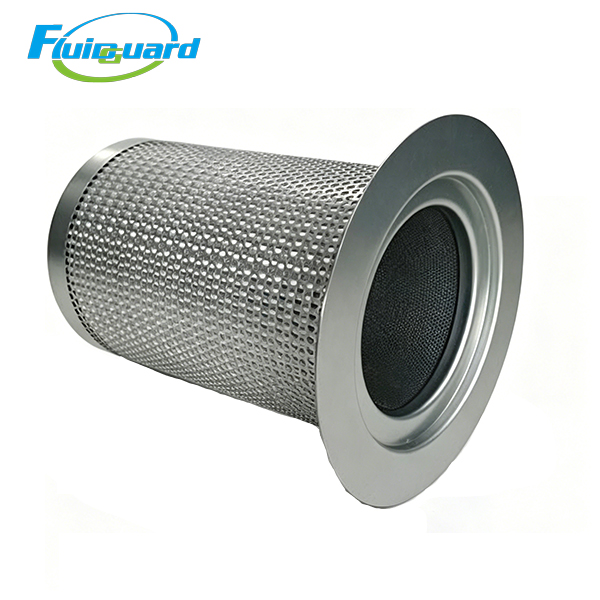

Oil Separators Filters

Part No: 205010101071

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3000–4000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 1.15 kg

Dimensions (mm)

Flange Outer Diameter: 158

Cartridge Outer Diameter: 126

Central Inner Hole Diameter: 78

Overall Height: 212

Application Scenarios

Auto repair garages, small precision machining workshops, plastic injection molding, electronic component assembly lines, small packaging factories, laboratory low-oil compressed air supply stations

Product Features

Multi-gradient high-density micro glass fiber media with stable oil mist holding capacity. It resists oil saturation under long-term light continuous loads and maintains ultra-low residual oil output throughout the full service cycle.

Uniform deep-pleated low-resistance cylindrical structure with ultra-low initial pressure drop. Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion and resistant to pressure surges. It eliminates static ignition risks in oil mist environments, and filter media will not deform or collapse under long full-load operation.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit via the central oil return tube for recycling, greatly cutting lubricating oil consumption and extending the overall machine maintenance interval.

It provides comprehensive protection for downstream refrigerated dryers, precision pneumatic tools and short-distance air pipelines, lowering maintenance costs of post-processing purification equipment.
