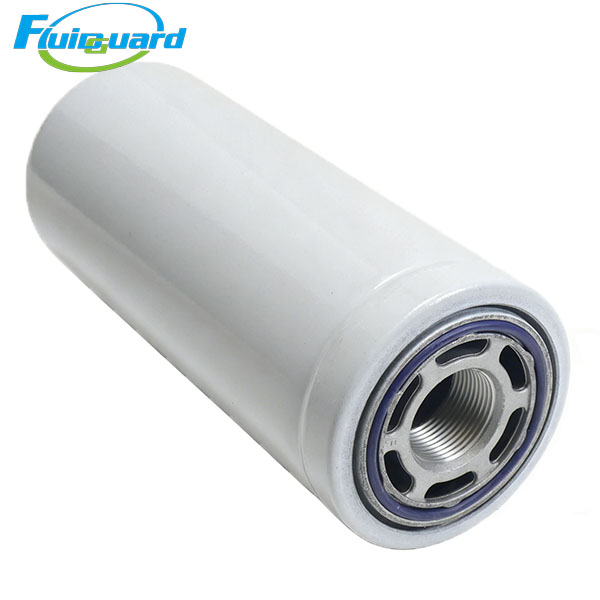

Oil Separators Filters

Part No: 88291009-563

Filter Media: Imported HV multi-layer borosilicate micro glass fiber coalescing media

Filtration Precision: ≤0.1 μm fine oil mist capture

Separation Efficiency: ≥99.999%

Residual Oil Content at Air Outlet: ≤3 ppm

Standard Service Life: 4000–6000 working hours

Max Working Pressure: 1.0 MPa (10 bar)

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Gross Weight: ~2.5 KG

Dimensions (mm): Outer Diameter 102, Overall Height 275

Application: Construction drilling, road engineering, mine mobile air supply

Application Scenarios

Mountain mining drilling, highway road construction, bridge engineering, water conservancy project blasting, remote field mobile air compression stations, construction sandblasting & rock drilling equipment

Product Features

Multi-gradient high-density glass fiber media with ultra-large oil holding capacity, anti-saturation under high-flow heavy-load continuous operation, residual oil stably controlled ≤3 ppm throughout full service cycle.

Heavy-duty thickened anti-rust metal shell, shock & vibration resistant, adapted to bumpy mobile construction environment; filter media will not deform or collapse under large airflow, eliminate static ignition risk of oil mist.

Integrated top spin-on thread + one-piece Viton sealing pad, perfect fit original portable compressor separator base. Fluorine rubber seal withstand wide temperature fluctuation & frequent start-stop, zero leakage to avoid air-oil bypass and excessive oil carry-over.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture massive micron-scale lubricant oil aerosol mixed in large-flow compressed air. Separated lubricant flows back to airend via built-in return channel for cyclic reuse, greatly reduce oil refilling frequency and extend whole machine maintenance cycle for field mobile units.

It fully protects downstream pipeline filters, air dryers, rock drills and sandblasting nozzles, lower field equipment failure rate & maintenance cost.
