Oil Separators Filters

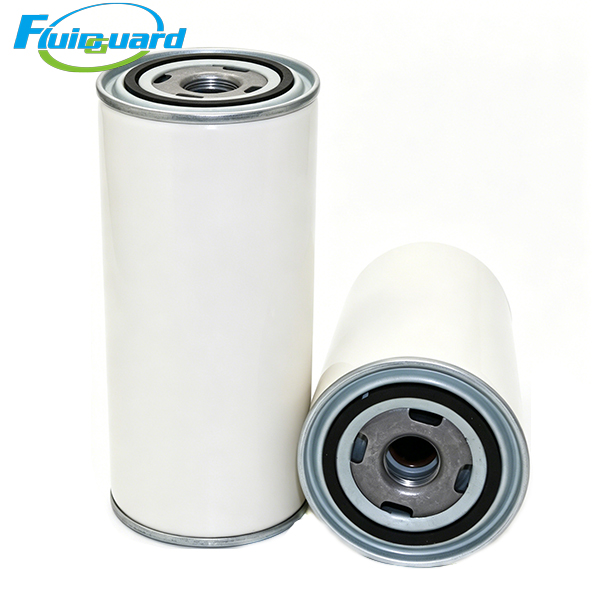

Part No: 6221372800

Type: External spin-on screw-type air-oil separator cartridge

Filter Media: Imported HV multi-layer borosilicate micro glass fiber coalescing media

Filtration Precision: ≤0.1 μm fine oil mist capture

Separation Efficiency: ≥99.999%

Residual Oil Content at Air Outlet: ≤3 ppm

Standard Service Life: 3200–5200 working hours

Max Working Pressure: 1.0 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Gross Weight: 1.03 KG

Application Scenarios

Small electronic assembly workshops, laser marking equipment, laboratory air supply, mini food packaging lines, small hardware machining workshops, dental medical clean air systems

Product Features

Multi-gradient high-density glass fiber media with stable oil holding capacity, anti-saturation under light continuous load, residual oil stably controlled ≤3 ppm for full service cycle.

Compact mini spin-on cylindrical design, slow differential pressure rise, effectively reduce power consumption of small low-power main units.

Integral anti-rust metal shell, shock & corrosion resistant; filter media will not deform under low airflow, eliminate static ignition risk of oil mist.Fluorine seal withstand high temperature & aging, zero leakage under frequent start-stop and temperature fluctuation to avoid air-oil bypass and excessive oil carry-over.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant oil aerosol mixed in small-flow compressed air. Separated lubricant flows back to airend via built-in return channel for cyclic reuse, greatly reduce oil refilling frequency and extend whole machine maintenance cycle.

It fully protects downstream small refrigerated dryers, micro precision pneumatic valves, laser marking heads and mini spray guns, lower failure rate & maintenance cost of miniature post-air-treatment purification systems.
