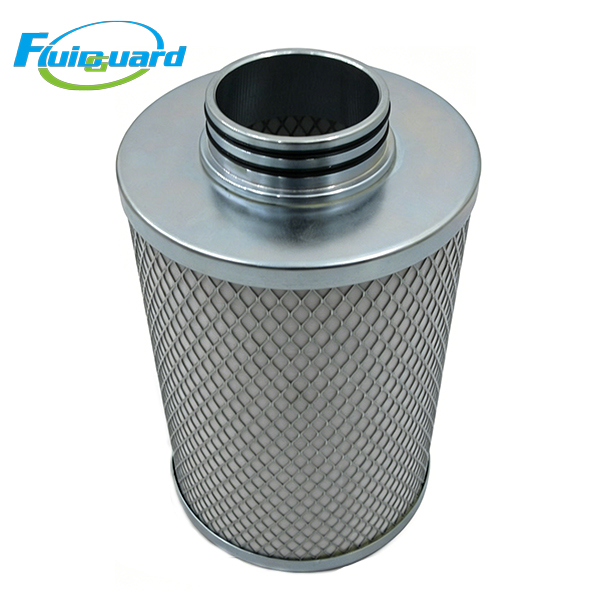

Oil Separators Filters

Part No: 02250160-774

Filter Media: Imported multi-layer HV borosilicate micro glass fiber composite coalescing media

Filtration Precision: ≤0.1 μm fine oil mist interception

Separation Efficiency: ≥99.999%

Residual Oil Content at Air Outlet: ≤3 ppm

Standard Service Life: 4000–6000 working hours; shorten to 2800h under dusty heavy-duty workshop environments

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -10℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Cartridge Outer Diameter: 246

Central Inner Hole Diameter: 152

Overall Height: 468

Application Scenarios

Auto parts precision machining, general machinery foundries, medium injection molding plants, electronic assembly production lines, factory centralized compressed air stations, low-oil clean air workshops for food packaging, light mining stable air supply systems

Product Features

Multi-gradient high-density glass fiber media with large oil storage capacity, resistant to saturation under long-term medium continuous loads, maintaining stable residual oil ≤3 ppm throughout the full service cycle.

Deeply pleated low-resistance cylindrical design with slow differential pressure rise, effectively lowering power consumption of 55–90 kW main compressor units.

Double-layer thickened galvanized perforated anti-static inner & outer support cages, anti-vibration and anti-corrosion. Filter media will not deform or collapse under maximum airflow, eliminating static ignition risks of oil mist.Fluorine rubber rings deliver outstanding high temperature & aging resistance, achieving zero leakage under frequent startup/shutdown and drastic temperature fluctuations to prevent air-oil bypass and excessive oil carry-over.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricating oil aerosol mixed in medium-flow compressed air. Separated lubricant flows back to the airend via the bottom gravity oil return hole for cyclic reuse, greatly reducing oil refilling frequency and extending the overall machine maintenance interval.

It provides full protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, cutting failure rates and maintenance costs of post-air-treatment purification systems.
