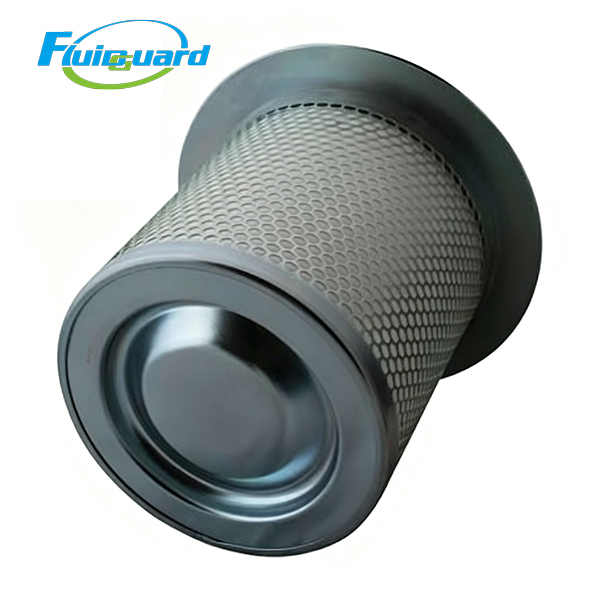

Model : 537704312100
Type : Oil Separators Filters
Replacement for : 537704312100
It can fully capture oil mist particles inside compressed air and strictly control residual oil content below 3 ppm. It stabilizes compressed air cleanliness, avoids oil contamination of downstream pneumatic equipment, and extends the overall service life of the air compressor system.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 537704312100
Type: Flange-mounted coalescing separator
Media: Imported HV Borosilicate Glass Fiber
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–5200 hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Weight: 5.0 kg
Dimensions
Outer Diameter: 217 mm
Inner Diameter: 156 mm
Height: 280 mm
Product Features
High-capacity HV glass fiber filter media delivers outstanding oil mist interception effect
Low initial pressure drop effectively reduces compressor power consumption
Anti-static perforated steel housing, anti-corrosion and explosion-proof
High-temperature resistant Viton rubber seal for stable long-time sealing
Product Description
It can fully capture oil mist particles inside compressed air and strictly control residual oil content below 3 ppm. It stabilizes compressed air cleanliness, avoids oil contamination of downstream pneumatic equipment, and extends the overall service life of the air compressor system.
