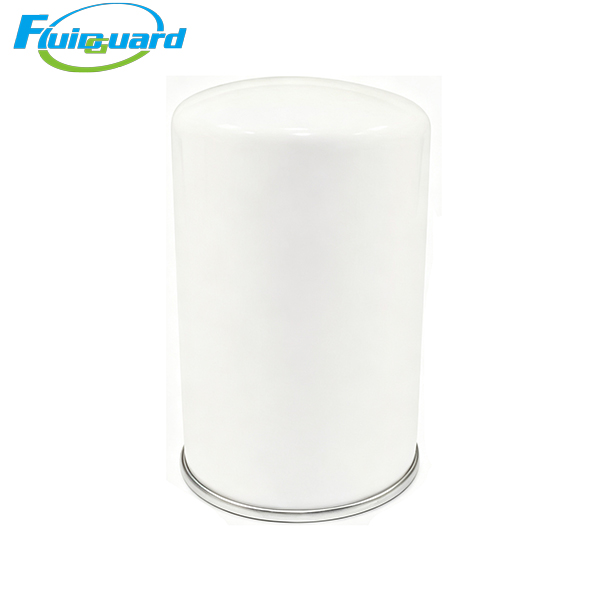

Model : 6211473750
Type : Oil Separators Filters
Replacement for : 6211473750
Widely applied in machinery processing, paint spraying, textile, electronic manufacturing and packaging factories.Core function: Separate lubricating oil from compressed air, recycle oil to the compressor main unit, lower oil content of output air, and protect downstream precision compressed air fil
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Key Features
High-performance multi-layer micro glass fiber filter media
Gradient fine fiberglass captures tiny oil mist particles, oil separation efficiency ≥99.9%, residual oil in compressed air below 3ppm, effectively cutting compressor oil consumption.
High temperature & pressure resistant structure
Inner and outer metal perforated support frames avoid medium deformation under air pressure shocks. High-temperature resistant composite sealing gasket provides full sealing to prevent oil bypass leakage, stable operation at 60–115°C.
Low pressure loss & long service cycle
Large filtration area keeps low initial pressure drop to save unit power consumption. Standard service life is 4000 running hours; replace once differential pressure exceeds 0.08MPa.
Integrated cylindrical built-in structure
Simple installation inside compressor air-oil tank, easy replacement. Disposable element, unable to be cleaned and reused.
Main Applications
Widely used in machinery processing, spraying, textile, electronics and packaging workshops.Core function: Recycle lubricant oil for the compressor host, reduce oil content of finished compressed air, and protect post-stage precision compressed air filters.
