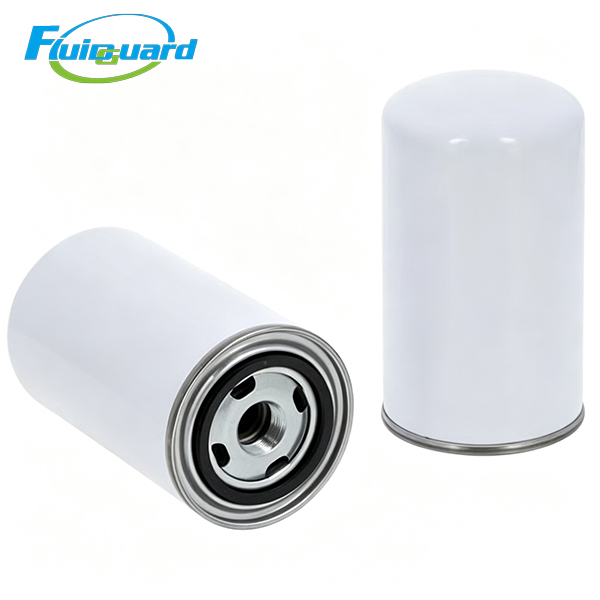

Oil Separators Filters

Complete Technical Specifications

Separation Performance

Filter Media: Multi-layer gradient borosilicate glass fiber composite

Capture Precision: 0.1μm ultra-fine oil mist particles

Separation Efficiency: ≥99.99%

Residual Oil Content in Outlet Air: 3–6 ppm

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Operating Working Conditions

Max Working Pressure: 16 bar

Medium Temperature Range: -10°C ~ +120°C

Applicable Medium: Mixed fluid of compressed air/vacuum air + lubricant oil mist

Standard Service Life: 4,000–6,000 running hours

Sealing Material: High-temperature oil-resistant FKM fluororubber gasket

Mount Thread: Standard internal spin-on thread

Structural Design Features

Double-layer galvanized perforated metal inner & outer support mesh, prevents filter media collapse under long-term high airflow pressure

Built-in central vertical oil return tube, condensed lubricant automatically flows back to equipment oil sump

Integrated metal spin-on thread base, direct screw installation for fast maintenance

Dual-stage separation design: Gravity sedimentation for large oil droplets + coalescence filtration for tiny oil mist

Working Principle

High-temperature oil-air mixture discharged from compressor airend enters the separation tank; large liquid oil droplets sink to tank bottom via gravity primary separation.

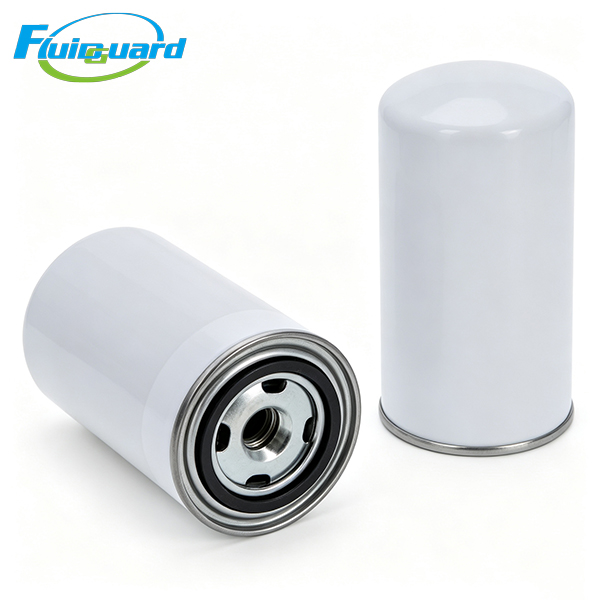

Mixed gas penetrates the multi-layer glass fiber media of 11000949 separator element, tiny 0.1μm oil mist collides with fiber layers and aggregates into large liquid oil droplets.

Aggregated oil flows down the inner wall of the spin-on cartridge and drains back to the lubrication system through the central oil return pipe for cyclic reuse.

Clean air without oil mist passes through the central channel and is delivered to downstream production equipment.
