Oil Separators Filters

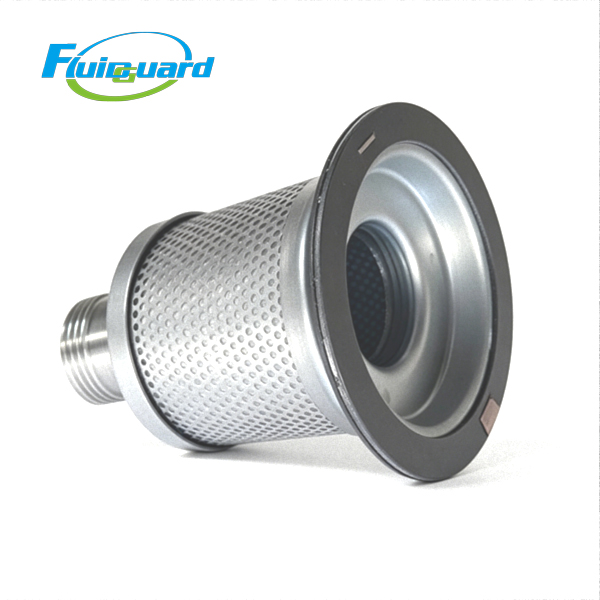

Part No: 9660011124

Type: Spin-on external threaded air oil separator

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3000–4500 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 1.6 kg

Dimensions (mm)

Overall Outer Diameter: 146

Total Height: 238

Application Scenarios

Auto repair garages, small machining workshops, plastic injection molding, electronic component assembly lines, small factory centralized compressed air supply stations

Product Features

Multi-gradient high-density borosilicate glass fiber media with stable oil mist absorption capacity, resisting oil saturation under long-term light & medium continuous load and maintaining consistent separation efficiency throughout service life.

Uniform deep-pleated low-resistance internal structure with ultra-low initial pressure loss; differential pressure rises moderately during full-load operation to effectively cut power consumption of small screw compressors.

Integral thickened anti-corrosion steel shell with built-in anti-static support mesh, resisting pressure fluctuation and shock; eliminates static ignition risks in oil mist environment.

Standard M90 spin-on threaded interface with one-piece integrated high-temperature rubber gasket, supporting quick direct screw installation. Stable sealing performance under drastic day-night temperature changes to avoid oil bypass.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting residual oil content of outlet air below 3 ppm. Separated lubricant flows back to the compressor main unit through the built-in bottom return passage for circulation, greatly reducing lube oil consumption.It provides comprehensive protection for downstream refrigerated dryers, precision pneumatic tools and air pipelines, extending maintenance interval and overall service life of the whole small compressor unit and supporting post-processing purification equipment.
