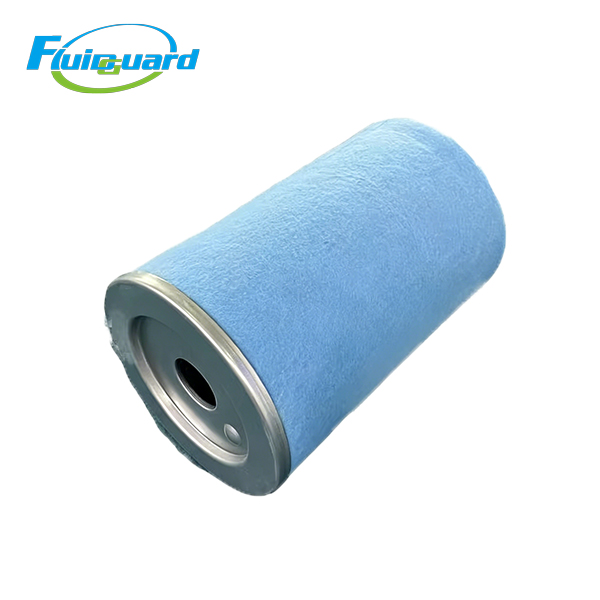

Oil Separators Filters

PN: 1626016301

Type: Built-in flange coalescing separator cartridge

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 3.7 kg

Dimensions

Main Body OD: 182 mm

Inner Core ID: 121 mm

Overall Height: 265 mm

Product Features

Multi-layer composite HV glass fiber media with large oil mist holding capacity, stably intercepts ultra-fine oil mist particles for long-cycle operation

Optimized pleated low-resistance structure maintains ultra-low initial pressure drop, effectively reduces compressor power consumption and operation cost

Full-perforated anti-static steel inner & outer support cages, anti-corrosion and static explosion-proof, prevents filter element collapse under high pressure difference

High-temperature resistant Viton composite flange gasket, reliable leak-free sealing in full temperature range to avoid oil bypass leakage

Product Description

It fully coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, precision processing equipment and drying systems, cuts down compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the complete air compressor system.
