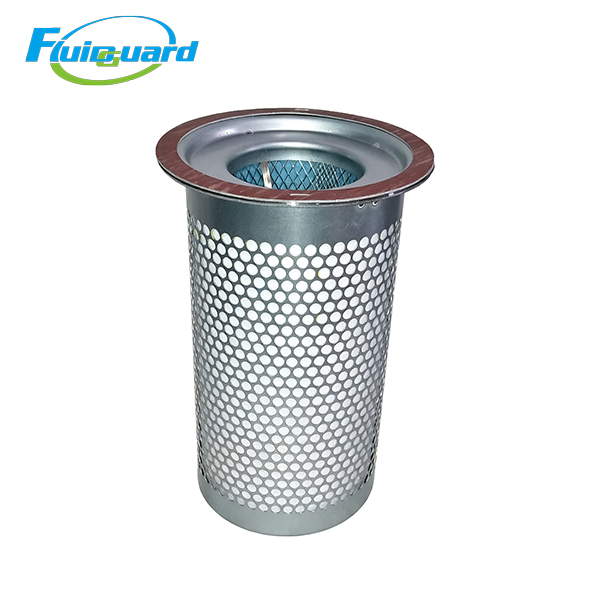

Oil Separators Filters

Model: 4930153401

Core Technical Specifications

Filtration Type: Vertical built-in cylinder air-oil separator core installed inside air compressor oil-gas tank

Separation Precision: 0.01 μm micro lubricant oil mist

Residual Oil Content in Outlet Air: ≤3 ppm

Separation Efficiency: 99.99%

Filter Media: Multi-layer composite HV borosilicate glass fiber, anti-static, high temperature resistant, anti-oil saturation

Max Working Pressure: 16 bar / 232 PSIG

Continuous Operating Temperature: ≤110℃

Standard Service Life: 4,000–6,000 running hours; mandatory replacement when differential pressure exceeds 0.8 bar

Sealing Structure: Integrated thickened metal flange + high temperature resistant composite nitrile rubber gasket, zero oil leakage risk

Key Product Advantages

Two-stage gradient coalescence separation to control oil consumption

Multi-layer gradient glass fiber captures micro oil mist generated by screw rotor compression. Coalesced liquid lubricant flows back to compressor oil tank through central oil return tube, effectively reducing oil consumption and stabilizing the cleanliness of downstream compressed air.

Low initial differential pressure for energy saving

Large deep-pleated filter area optimizes internal airflow channels to minimize pressure loss. Avoids increased motor load and extra power consumption caused by clogged separator, cutting long-term factory electricity costs.

Large oil storage capacity & anti-saturation performance

Thick gradient fiber matrix stores massive coalesced lubricant oil, resists blockage from high-temperature aging oil and sludge, and adapts to 24-hour continuous full-load industrial operation.

High temperature anti-corrosion reinforced structure

Galvanized protective mesh and high-temperature sealing gasket withstand long-term high-temperature oil-gas mixed environment; prevents filter medium rupture and fiber shedding to avoid secondary oil contamination of pipeline post-filter and terminal equipment.

 Application & Industries

Core wearing spare part installed inside screw compressor oil-gas separation tank.

Widely applied in automotive manufacturing, packaging printing, textile factories, electrostatic spraying workshops, food sterile packaging, laser cutting equipment, pharmaceutical workshops and centralized factory compressed air supply stations.
