Oil Separators Filters

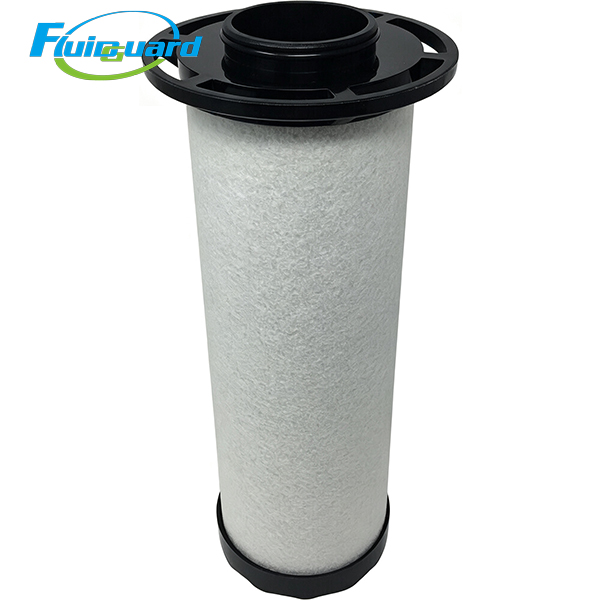

Model: 24242331

Core Technical Specifications

Filter Grade: ID Dry Solid Particulate Filtration

Filtration Precision: 1 μm solid particles, residual fine dust & solid contaminants

Outlet Solid Particle Residue: ISO 8573-1 Class 2 solid cleanliness

Filter Media: Multi-layer gradient borosilicate microfiber composite, oil-repellent surface treatment

Rated Matching Airflow Capacity: 800 m³/h

Max Working Pressure: 17.2 bar / 250 PSIG

Max Continuous Operating Temperature: ≤80℃

Service Life Standard: 4000 working hours OR 12 months, whichever comes first; replace when differential pressure reaches 0.35 bar

Airflow Direction: Outside-to-Inside

Seal Structure: Integrated reinforced black plastic top & bottom positioning end caps with integral NBR nitrile full perimeter O-ring sealing

Key Product Features

Final-Stage Solid Dust Removal Protection

Installed downstream of H-grade superfine coalescing filter and refrigerated air dryer. It captures residual pipeline rust, fine solid wear debris and dry particulate pollutants that coalescing filters cannot fully intercept, thoroughly protecting precision terminal equipment such as laser cutters, spray guns and electronic assembly tools from abrasive damage.

Ultra-Low Differential Pressure & Energy Saving

Deep-pleated large-area microfiber media minimizes airflow turbulence and flow resistance under continuous full-load operation. Stable low pressure drop reduces extra power consumption of air compressors and lowers long-term factory operating costs.

Large Dirt Holding & Contaminant Storage Capacity

Thick gradient fiber matrix stores massive solid particulate contaminants, greatly extending maintenance intervals and cutting production downtime caused by frequent element replacement.

Heavy-Duty Stainless Steel Anti-Collapse Reinforcement Cage

Dual stainless steel mesh cages resist strong high-speed airflow impact under heavy-duty industrial working conditions, preventing filter media bulging, deformation and fiber shedding to eliminate secondary solid contamination of clean compressed air.

Working Principle

Compressed air after oil & water removal by IG and IH elements enters the cartridge from the outer stainless steel protective mesh. Multi-layer gradient microfiber matrix intercepts all solid particles above 1μm, locking contaminants inside the fiber structure. Fully de-oiled, de-watered and dust-free compressed air flows out from the central core pipe to downstream high-precision production equipment.

Application & Industries

Dry particulate polishing filter for large-flow industrial compressed air post-processing systems, installed after superfine coalescing filters and refrigerated dryers.

Widely applied in precision electronic assembly, pharmaceutical aseptic manufacturing, food sterile packaging, medical equipment processing, optical coating, laboratory analytical instruments, automotive topcoat spraying, heavy-duty laser cutting and factory centralized large-flow compressed air supply systems requiring high solid cleanliness air.
