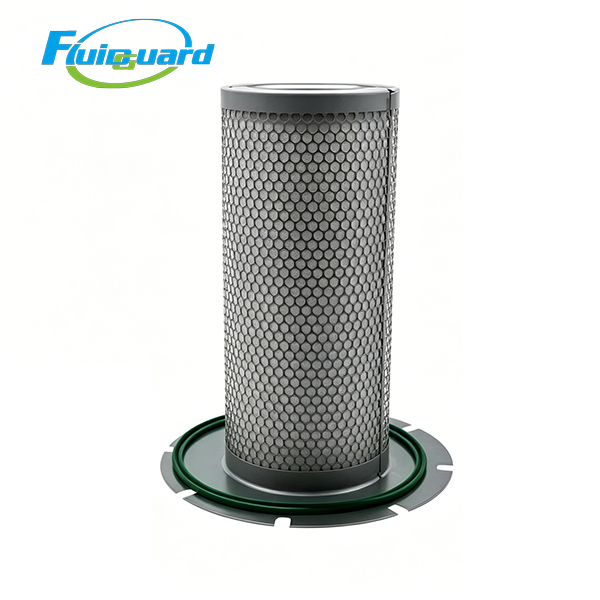

Oil Separators Filters

PN: 1631105500

Type: Flange-mounted coalescing separator

Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~5.1 kg

Dimensions

Main Body OD: 168 mm

Inner Core ID: 107 mm

Overall Height: 300 mm

Product Features

Multi-layer composite HV glass fiber media, large oil mist holding capacity, stable separation efficiency for long-cycle operation

Optimized pleated low-resistance structure keeps ultra-low initial pressure drop, effectively cuts compressor power consumption and operation cost

Full-perforated anti-static steel inner & outer support cages, anti-corrosion, anti-explosion, prevents filter element collapse under high pressure difference

High-temperature resistant composite flange gasket, reliable leak-free sealing in full temperature range, avoids oil bypass

Product Description

It fully coalesces and intercepts ultrafine lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines, precision equipment and drying systems, cuts down compressor lubricant consumption, guarantees continuous clean compressed air supply, and extends the overall service life of the whole air compressor system.
