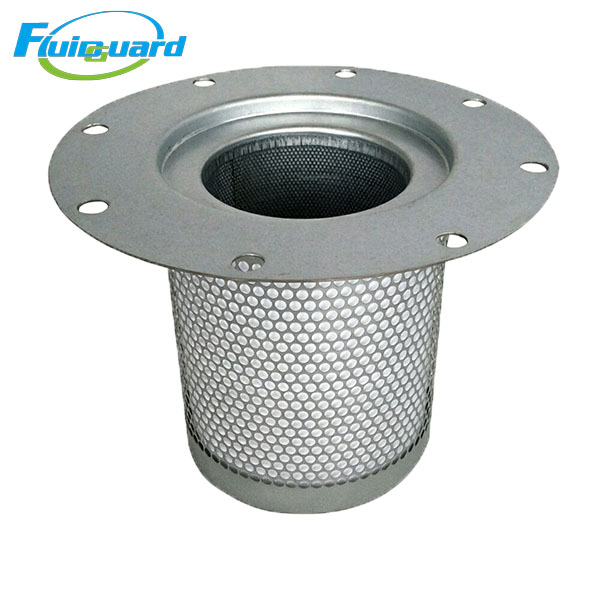

Oil Separators Filters

PN: 2906063800

Type: Flange-mounted primary oil separator

Media: High-efficiency borosilicate glass fiber composite

Filtration precision: ≤ 0.1 μ

Separation efficiency: ≥ 99.9%

Oil carry-over: 3–6 ppm

Dimensions: OD 280 mm, ID 150 mm, Height 320 mm

Weight:  8.5 kg

Service life: 3500 – 5200 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.0 MPa

Max working temperature: ≤ 120°C

Application

Widely used in manufacturing, workshops, food  beverage, pharmaceuticals requiring clean compressed air.

Features

Multi-layer high-density fiberglass media ensures high efficiency and long life.

Rigid steel flange with sealing groove for leak-free installation.

Perforated metal outer cage for structural strength and pleat protection.

Description

It coalesces fine oil mist from compressed air, delivering clean, dry air while minimizing oil carry-over and extending downstream equipment life.
