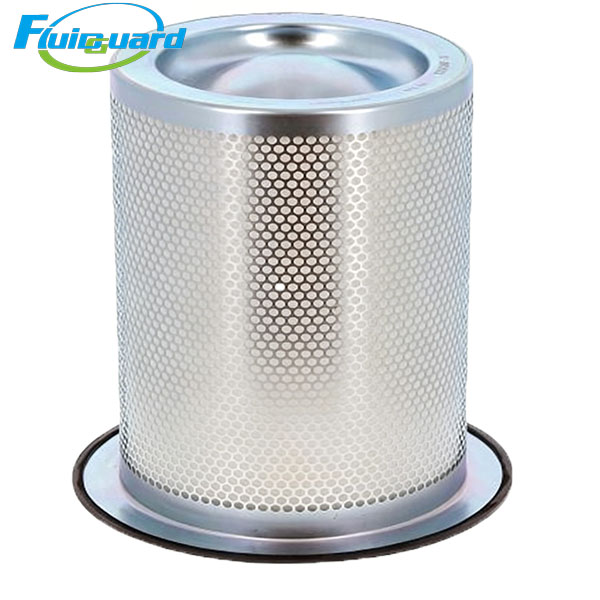

Model : 22219174
Type : Oil Separators Filters
Replacement for : 22219174
It efficiently removes oil mist from compressed air via coalescing action, ensuring clean air output, stable equipment operation, and reduced oil consumption for downstream applications.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 22219174
Type: Primary oil separator element
Filtration precision: ≤ 0.1 μm
Separation efficiency: ≥ 99.9%
Oil carry-over: 3–6 ppm
Dimensions: OD 350 mm , ID 265 mm, Height 477 mm
Weight: 10.8 kg
Service life: 3500 – 5200 working hours
Initial pressure drop: ≤ 0.02 MPa
Working pressure: 0.7 – 1.0 MPa
Max working temperature: ≤ 120°C
Application
Widely used in manufacturing, mining, chemical, power plant and other industrial fields.
Features
High-performance multi-layer glass fiber media for high efficiency and long life.
Advanced pleated structure with high dirt-holding capacity.
Heavy-duty metal end caps with corrosion resistance for durability.
Stable low residual oil, meeting strict industrial air quality standards.
Description
It efficiently removes oil mist from compressed air via coalescing action, ensuring clean air output, stable equipment operation, and reduced oil consumption for downstream applications.
