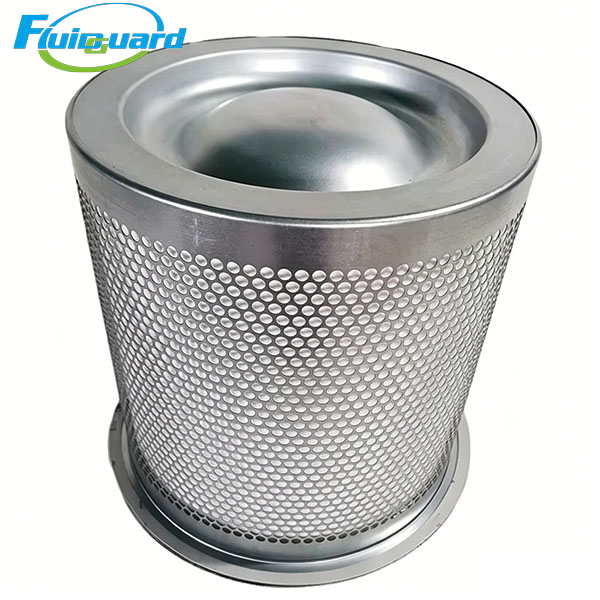

3422012502 Oil Separators Filter

Model : 3422012502

Type : Oil Separators Filters

Replacement for : 3422012502

It effectively removes oil mist from compressed air, maintains stable equipment operation and meets strict air quality requirements for various industrial application

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 3422012502

Type: Primary oil separator element

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions: OD 350 mm, ID 240 mm, Height 400 mm

Weight: 11.5 kg

Service life: 3500 – 5200 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working temperature: ≤ 120°C

Application

Widely applied in construction, mining, drilling and equipment rental industries.

Features

Multi-layer fiberglass material delivers excellent separation performance and long service life.

Static conductive design avoids static accumulation under harsh working conditions.

Reinforced metal end caps with great corrosion resistance for durable use.

Ultra-low residual oil content ensures high purity of compressed air.

Description

It effectively removes oil mist from compressed air, maintains stable equipment operation and meets strict air quality requirements for various industrial application
