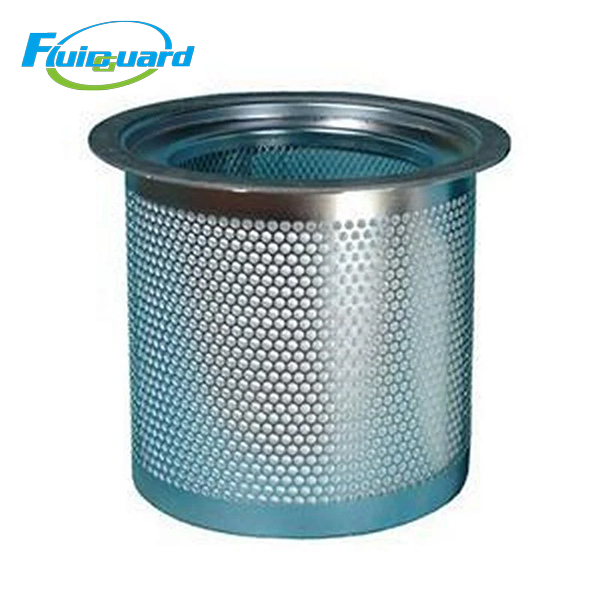

Oil Separators Filters

Part No: 250041-703

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Flange Outer Diameter: 348

Cartridge Outer Diameter: 302

Central Inner Hole Diameter: 215

Overall Height: 465

Auto parts precision machining, general machinery workshop, medium injection molding factories, electronic assembly production lines, factory centralized air supply stations, food packaging low-oil clean air production

Multi-gradient dense glass fiber media with stable large oil mist storage capacity, anti-saturation under continuous medium load, stably control residual oil ≤3 ppm throughout full service cycle.

Moderate height deep-pleated low-resistance cylinder, slow differential pressure rising under long full-load running, effectively reduce power consumption of 75–100kW main unit.

Double-layer perforated galvanized anti-static inner & outer support cages, anti-corrosion & anti-pressure surge; filter media will not deform or collapse under rated airflow, eliminate static ignition risk of oil mist.

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in medium-flow compressed air. Separated lubricant flows back to compressor main unit via bottom central gravity oil return tube for recycling, greatly cut lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, lower breakdown frequency and maintenance cost of air post-processing purification system.
