Oil Separators Filters

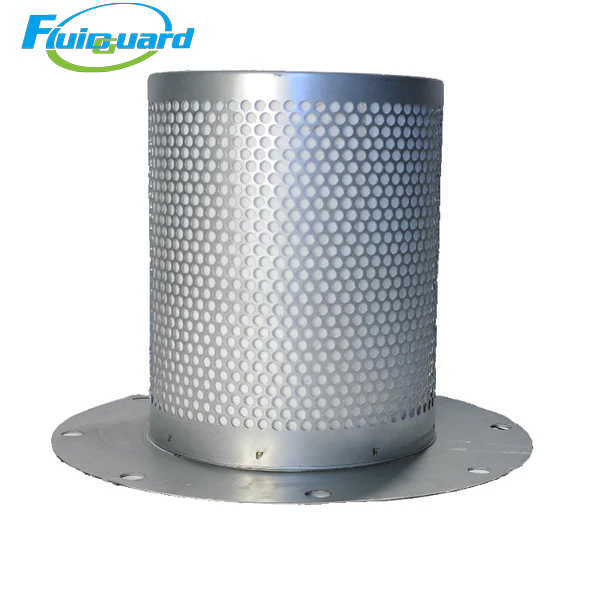

Part No: 92725514

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3500–5200 working hours; service life shortened to 2800 hours under dusty construction conditions

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 480mm

Cartridge Outer Diameter: 435mm

Central Inner Hole Diameter: 310mm

Overall Height: 620mm

Application Scenarios

Open-pit mining, road & bridge construction, tunnel engineering, oil & gas field field operations, temporary shipyard air supply, remote construction site mobile air stations

Product Features

Multi-layer high-density gradient glass fiber media with ultra-large oil storage capacity, resisting saturation under long-term heavy loads, and stably maintaining residual oil ≤3 ppm throughout the service cycle.

Deeply pleated low-resistance cylinder with extended height, featuring slow differential pressure rise under long full-load operation to effectively reduce fuel consumption of portable compressor main units.

Double-layer thickened perforated galvanized inner and outer support screens with excellent shock and impact resistance, adapting to bumpy construction site conditions. The filter media will not collapse or deform under airflow, eliminating static ignition risks of oil mist.

Integrated flange equipped with wear-resistant nitrile rubber gasket, resisting leakage caused by frequent startup and shutdown vibration to prevent air-oil short circuit and excessive oil carry-over failures.

Product Description

Adopting high-efficiency glass fiber coalescing separation technology, it intercepts micron-scale lubricating oil mist in high-volume compressed air. Separated lubricant flows back to the main unit for circulation via the central gravity oil return tube at the bottom, significantly reducing oil refilling frequency and extending the overall machine maintenance interval.

It fully protects downstream drying & filtering equipment, rock drills, sandblasting tools, pipeline pressure testing and other pneumatic construction equipment, lowering breakdown frequency and maintenance costs of the mobile air supply system.
