Oil Separators Filters

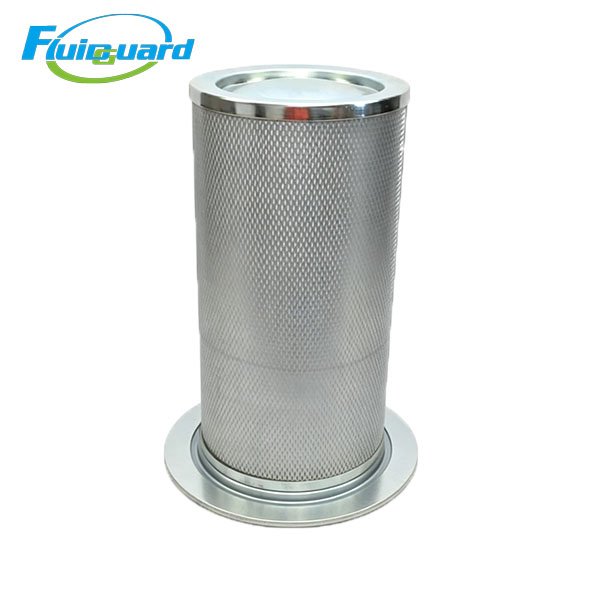

Part No: KV820-002P

Type: Flange built-in coalescing air/oil separator cartridge

Filter Media: Multi-layer gradient borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3500–6000 working hours; shorten to 2800h under dusty heavy-duty environment

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Application Scenarios

Automotive assembly plants, heavy machinery foundry & machining, super-large injection molding workshops, mine & shipyard central compressed air stations, chemical industry large-scale air supply systems

Product Features

Oversized multi-gradient high-density glass fiber media with massive oil mist storage capacity, anti-saturation under long-term full heavy load, stably control residual oil ≤3 ppm throughout full service cycle.

Deeply pleated low-resistance tall cylinder, slow differential pressure rise during continuous high-flow operation, effectively reduce power consumption of 250–315kW large main unit.

Double-layer thickened perforated anti-static inner & outer support cages, anti-corrosion and anti-pressure surge; filter media will not deform or collapse under maximum airflow, eliminate static ignition risk of oil mist.

Standard multi-hole flat flange fully matched original oil tank mounting dimension. Nitrile rubber gasket maintains stable sealing under frequent start-stop and temperature fluctuation, avoid oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in ultra-large volume compressed air. Separated lubricant flows back to the main unit through the central bottom gravity oil return tube for recycling, greatly reduce lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream large refrigerated dryers, adsorption dryers, heavy-duty precision pneumatic valves and industrial spraying equipment, lower breakdown frequency and maintenance cost of large-scale air post-processing purification system.
