Oil Separators Filters

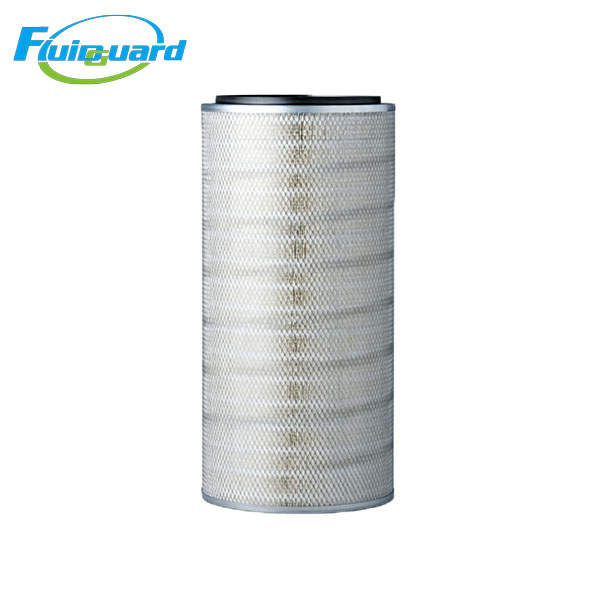

Model: 22402317

Core Technical Specifications

Separation Precision: 0.01 μm submicron lubricant oil mist

Residual Oil Carryover of Outlet Air: ≤3 ppm

Separation Efficiency: 99.99%

Filter Media: Imported multi-layer gradient HV borosilicate micro glass fiber composite, anti-static, high-temperature resistant & anti-oil saturation

Max Working Pressure: 16 bar / 232 PSIG

Continuous Operating Temperature: ≤120℃

Standard Service Life: 3,500–6,000 operating hours; mandatory replacement when differential pressure exceeds 0.8 bar

Initial Differential Pressure: ≤0.02 MPa

Key Product Advantages

Two-Stage Gradient Coalescence to Cut Oil Consumption

Multi-layer gradient glass fiber fully captures ultra-fine oil mist generated by screw compression. Agglomerated liquid lubricant oil flows back to the compressor oil tank via central oil return tube, effectively lowering oil consumption and stabilizing downstream compressed air cleanliness.

Low Initial Differential Pressure for Energy Saving

Oversized deep-pleated filtration area optimizes large-flow oil-gas internal channels to minimize pressure loss. Maintains stable low pressure drop under 24/7 full-load continuous operation, avoiding increased motor load and extra power consumption caused by clogged separator core.

Ultra-Large Oil & Sludge Holding Capacity

Thick gradient depth fiber matrix stores massive coalesced lubricant oil, carbon sludge and metal wear debris, resists clogging from high-temperature aging oil, suitable for heavy industrial uninterrupted long-cycle production.

Heavy-Duty Anti-Corrosion Reinforced Structure

Thick galvanized steel protective mesh and high-temperature composite sealing gasket withstand long-term high-temperature oil-gas mixed environment. Effectively prevents filter medium rupture and fiber shedding to avoid secondary oil contamination of pipeline precision filters and terminal production equipment.

Working Principle

High-temperature high-pressure oil-gas mixture discharged from screw airend penetrates glass fiber medium from outside to inside of separator core. Submicron oil mist particles collide and aggregate into large liquid oil droplets on fiber surface. Oil sinks to separator bottom by gravity and flows back to compressor lubricant tank via central return pipe; low-oil clean compressed air flows out to refrigerated dryer and pipeline precision filter system.

Application & Industries

Widely applied in large machinery manufacturing plants, automotive electrostatic spraying workshops, packaging printing factories, textile mills, food sterile packaging, laser cutting equipment, pharmaceutical clean workshops and centralized factory large-flow compressed air supply stations.
