Oil Separators Filters

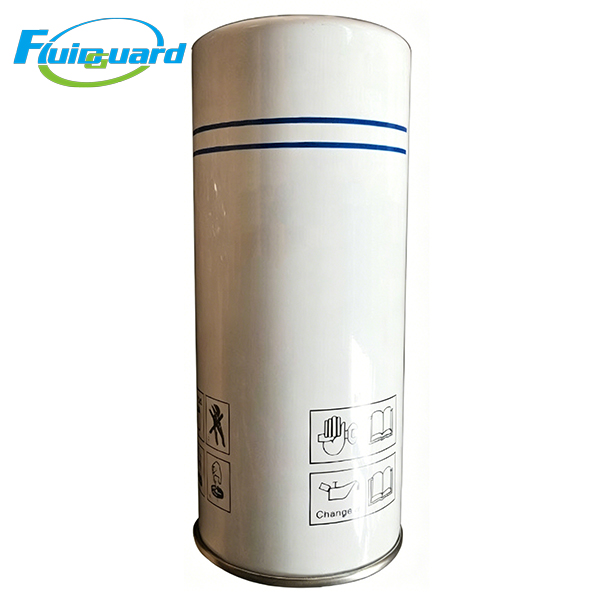

Part No: 1625182871

Type: External spin-on threaded air/oil separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–4000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 1.45 kg

Dimensions (mm)

Outer Diameter: 135

Overall Height: 305

Application Scenarios

Auto parts processing, medium machining workshops, plastic injection molding, electronic assembly production lines, packaging factories, medium factory central compressed air stations, laser cutting supporting air supply

Product Features

Multi-gradient high-density borosilicate glass fiber media with large oil mist holding capacity, resisting oil saturation under long-term medium-heavy continuous load and maintaining stable separation efficiency throughout full service cycle.

Uniform deep-pleated low-resistance internal structure with ultra-low initial pressure drop; differential pressure rises slowly during full-cycle operation to effectively reduce power consumption of medium-power screw compressors.

Thickened anti-corrosion steel shell with built-in anti-static support mesh, resistant to pressure fluctuation and mechanical shock; anti-static design eliminates static ignition risks in oil mist environment.

Standard spin-on threaded interface with one-piece integrated high-temperature rubber gasket, supporting quick screw-on installation without extra sealing parts. Stable sealing performance under drastic day-night temperature changes to avoid oil bypass and excessive oil carryover.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant aerosol mixed in compressed air, limiting outlet residual oil content below 3 ppm. Separated lubricant flows back to the compressor main unit through the built-in bottom return passage for recycling, greatly lowering lube oil consumption.

It provides comprehensive protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic components and laser cutting equipment, extending maintenance interval and overall service life of the entire compressor set and supporting post-processing purification equipment.
