Oil Separators Filters

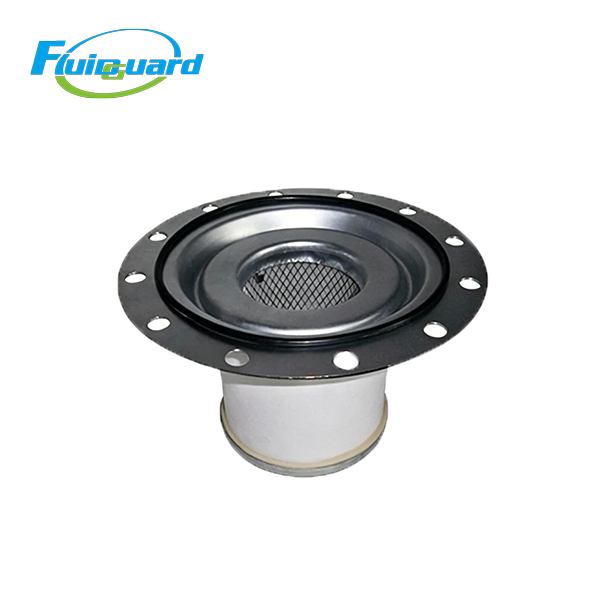

Part No: 1625165754

Type: Flat circular flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 1.9 kg

Dimensions (mm)

Flange Outer Diameter: 205

Cartridge Outer Diameter: 145

Central Inner Hole Diameter: 88

Overall Height: 210

Application Scenarios

Auto repair shops, small machining workshops, plastic injection molding, electronic assembly, laboratory air supply, small factory centralized compressed air stations

Product Features

Multi-gradient dense borosilicate glass fiber filter media, excellent oil mist storage capacity, stable coalescing effect under long-term light & medium load continuous operation, not easy to oil saturation.

Uniform deep-pleated low-resistance structure, ultra-low initial pressure loss, slow differential pressure rise, effectively reduce power consumption of small screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, pressure-fluctuation resistant, no medium collapse; anti-static design eliminates static spark risk in oil mist environment.

Standard multi-hole flat steel flange, complete matching mounting hole layout; matched high-temperature composite gasket prevents oil bypass and excessive residual oil under drastic day-night temperature changes.

Product Description

It adopts high-efficiency multi-layer borosilicate glass fiber coalescing technology to capture micro lubricant aerosol mixed in compressed air, controlling outlet residual oil content below 3 ppm.Separated lubricating oil flows back to the compressor host through the central return tube to realize oil recycling, reduce oil consumption, fully protect downstream refrigerated dryers, precision pneumatic tools and air pipelines, extend lubricating oil replacement cycle, and prolong service life of the whole small compressor unit and post-processing equipment.
