Oil Separators Filters

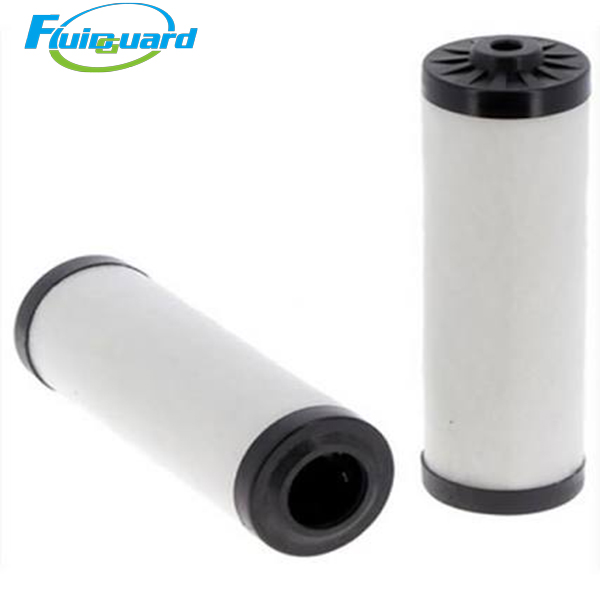

Part No: 55193142

Filter Media：Imported HV borosilicate micro glass fiber composite coalescing media

Filtration Precision：0.1 μm

Separation Efficiency：≥99.99%

Residual Oil Carry-over：≤3 ppm

Service Life：3000–4000 working hours

Max Working Pressure：0.7–1.3 MPa

Operating Temperature Range：-20℃ ~ 120℃

Initial Pressure Drop：≤0.02 MPa

Net Weight：2.7 kg

Dimensions (mm)

Flange Outer Diameter：230

Cartridge Outer Diameter：172

Central Inner Hole Diameter：106

Overall Height：275

Application Scenarios

Highway construction, tunnel excavation, open-pit mining, pipeline laying, municipal engineering, outdoor high-dust & continuous vibration heavy-duty working conditions

Product Features

Multi-layer gradient dense glass fiber filter media, huge oil mist storage capacity, stable coalescing performance under long-time bumpy outdoor construction environment, not easy to oil saturation.

Optimized uniform deep-pleated low-resistance structure, ultra-low initial pressure loss, slow differential pressure rise during continuous operation, effectively reduce mobile compressor diesel consumption.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion-resistant, shock and vibration resistant, no medium collapse under severe jolting and high differential pressure; anti-static design eliminates static ignition risk in oil mist environment.

Thickened multi-hole flat steel flange matched with wide temperature resistant composite sealing gasket, stable sealing under drastic day-night temperature fluctuation, effectively avoid oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency borosilicate glass fiber coalescing technology to capture ultra-fine lubricant aerosol mixed in compressed air, control outlet residual oil content below 3 ppm.

It can recover separated lubricating oil back to the unit oil tank, reduce fuel & oil consumption, fully protect downstream rock drills, sandblasting equipment, air pipelines and post-processing dryers, extend the whole mobile compressor maintenance cycle and service life of supporting equipment.
