Oil Separators Filters

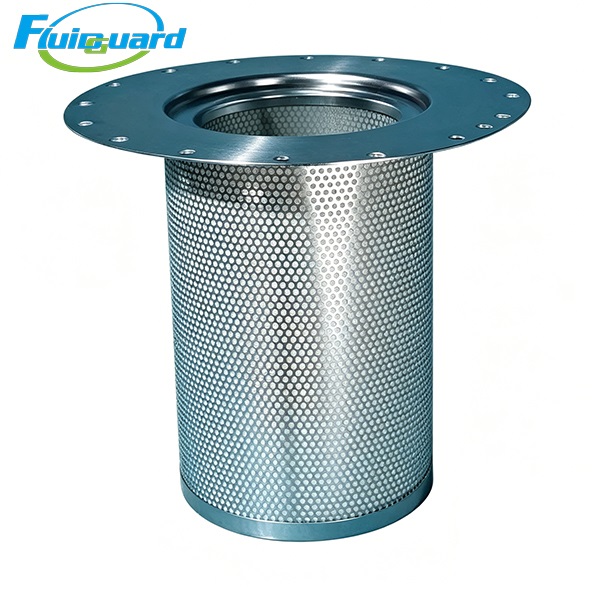

Part No: 1615603801

Type: Flange built-in coalescing air/oil separator cartridge

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Standard Service Life: 4000–8000 working hours

Max Working Pressure: 0.7–1.4 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 245mm

Cartridge Outer Diameter: 192mm

Central Inner Hole Diameter: 105mm

Overall Height: 310mm

Application Scenarios

Auto parts machining, precision machinery workshop, small injection molding factory, electronic assembly production line, small factory central air station, food packaging low-oil air demand

Product Features

Multi-gradient high-density glass fiber media with stable oil storage capacity, anti-saturation under continuous medium load, stably control residual oil ≤3 ppm full service cycle.

Moderate height deep-pleated low-resistance cylinder, slow differential pressure rising during long full-load running, effectively reduce power consumption of 45–55kW host.

Double-layer perforated galvanized anti-static inner & outer support cages, anti-corrosion & anti-pressure surge; filter media no deformation/collapse under rated airflow, eliminate static ignition risk of oil mist.

Standard multi-hole small flat flange fully matched original oil tank mounting dimension. Nitrile rubber gasket maintains reliable sealing under frequent start-stop & temperature fluctuation, avoid oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in medium-flow compressed air. Separated lubricant flows back to compressor main unit via bottom central gravity oil return tube for recycling, greatly cut lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, lower breakdown frequency and maintenance cost of air post-processing purification system.
